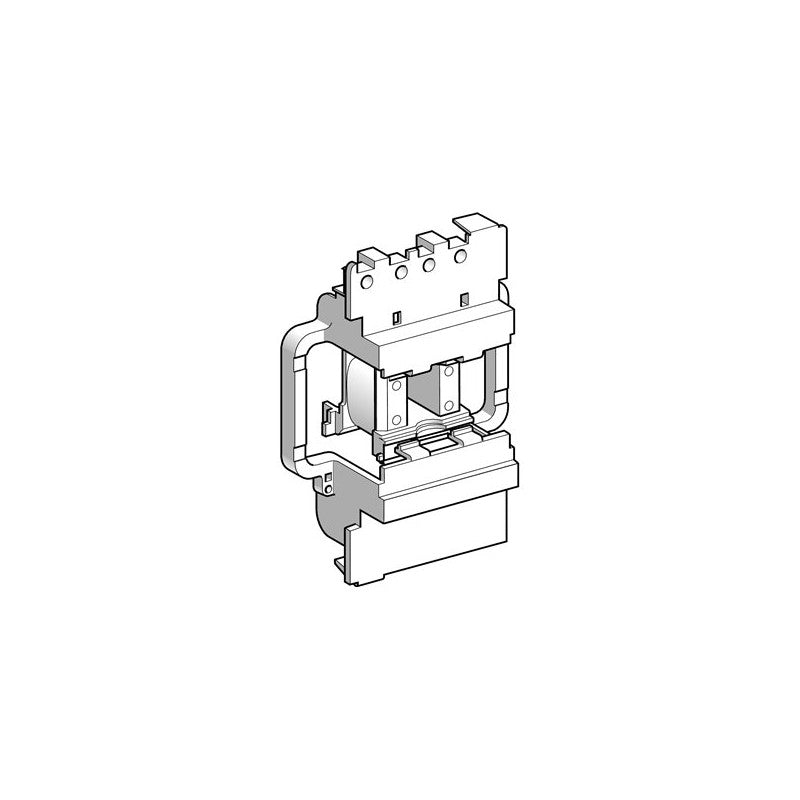

Designed for control and power management in industrial settings, the Schneider Electric TeSys D contactor coil (LX4D8) operates on a 48 V DC control voltage. This coil is specifically engineered for use with TeSys D contactors rated for 115 A and 150 A frame sizes, providing reliable switching capabilities for demanding applications.

Technical details

• Series: TeSys D
• Control Voltage: 48 V DC
• Compatible Contactor Frame Sizes: 115 A and 150 A
• Coil Type: Standard
• Functionality: Enables the operation of the associated TeSys D contactor by generating a magnetic field when energized.
• Application: Designed for direct current control circuits within automation systems.
• Mounting: Typically designed for plug-in installation into compatible TeSys D contactor bodies.
• Insulation Class: Refer to the manufacturer's datasheet for specific insulation ratings.

Applications & compatibility

This LX4D8 DC coil is integral to the operation of TeSys D contactors used in a wide array of industrial automation systems. It is commonly found in motor control circuits for machinery such as pumps, fans, compressors, and material handling equipment. Its compatibility with 115 A and 150 A contactors makes it suitable for medium to heavy-duty power switching applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4D8 Schneider Electric coil or contact our technical team for cross-reference assistance with compatible TeSys D components.
