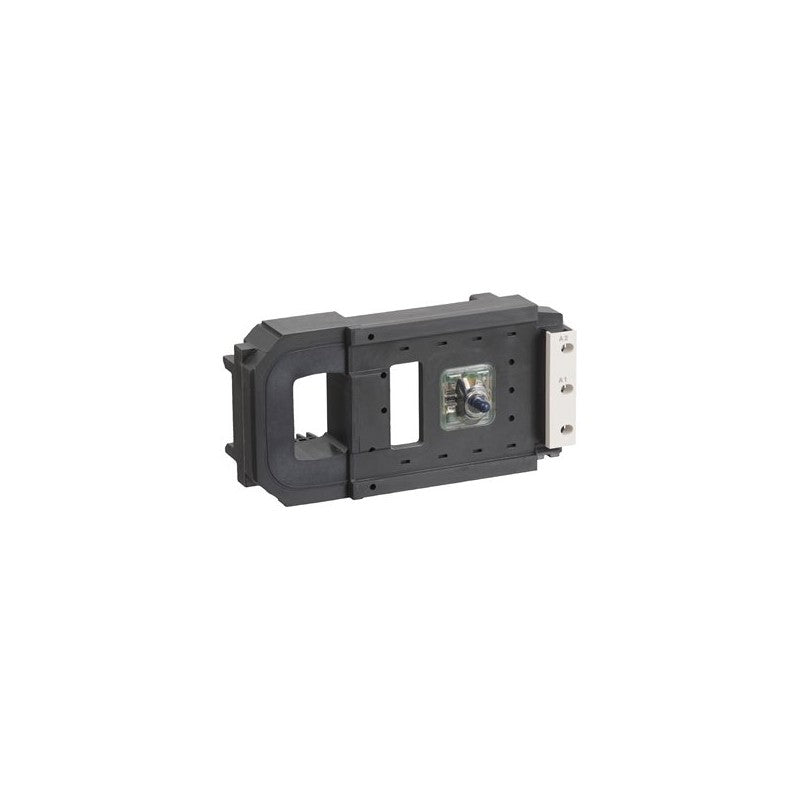

The Schneider Electric TeSys F contactor coil, model LX4F8FW, is engineered for DC control circuits. This component is integral to the TeSys F family of motor starters and power contactors, designed for demanding industrial applications requiring reliable switching of high power loads. Its specific voltage rating makes it suitable for systems operating within that DC voltage range.

Technical details

• Series: TeSys F
• Coil Type: Contactor Coil
• Control Voltage: 110...120 V DC
• Coil Code: LX4F8
• Application: Designed for use with TeSys F series contactors to provide coil energization for switching operations.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental operating limits.
• Mounting Type: Typically designed for direct integration into compatible TeSys F contactor assemblies.
• Insulation Voltage: Refer to the specific TeSys F contactor datasheet for overall system insulation ratings.

Applications & compatibility

This LX4F8FW coil is specifically designed for integration with Schneider Electric TeSys F series contactors. It is commonly found in heavy-duty motor control applications within industries such as material handling, HVAC systems, pump control, and general industrial machinery where robust and reliable DC coil operation is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4F8FW or contact our technical team for cross-reference assistance with compatible TeSys F components.
