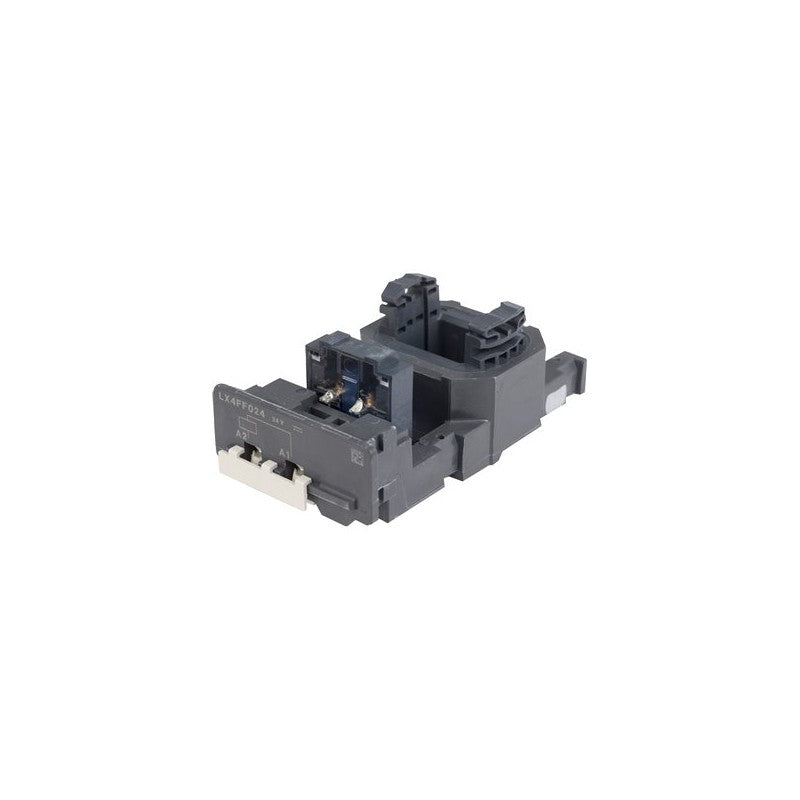

The Schneider Electric TeSys F contactor coil, model LX4FF, operates on a 24 V DC control voltage. This component is integral to the TeSys F series, a robust line of motor control and protection devices designed for demanding industrial environments. It serves as the electromagnetic actuator for TeSys F contactors, enabling the switching of high power circuits based on low-voltage DC signals.

Technical details

• Series: TeSys F
• Coil Voltage: 24 V DC
• Control Type: DC
• Actuation: Electromagnetic
• Function: Contactor Coil
• Compatibility: Designed for use with Schneider Electric TeSys F contactors. Specific contactor model compatibility should be verified against manufacturer datasheets.
• Mounting: Typically designed for plug-in or screw mounting within compatible TeSys F contactor assemblies.
• Environmental Rating: Refer to the specific TeSys F contactor datasheet for environmental specifications such as operating temperature and ingress protection.

Applications & compatibility

This LX4FF contactor coil is commonly employed in applications requiring reliable DC control of motor starters and power switching circuits. It is suitable for integration into control panels for machinery found in sectors such as material handling, HVAC systems, and general industrial automation where 24 V DC control power is standard.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FF024 or contact our technical team for cross-reference assistance with compatible TeSys F components.
