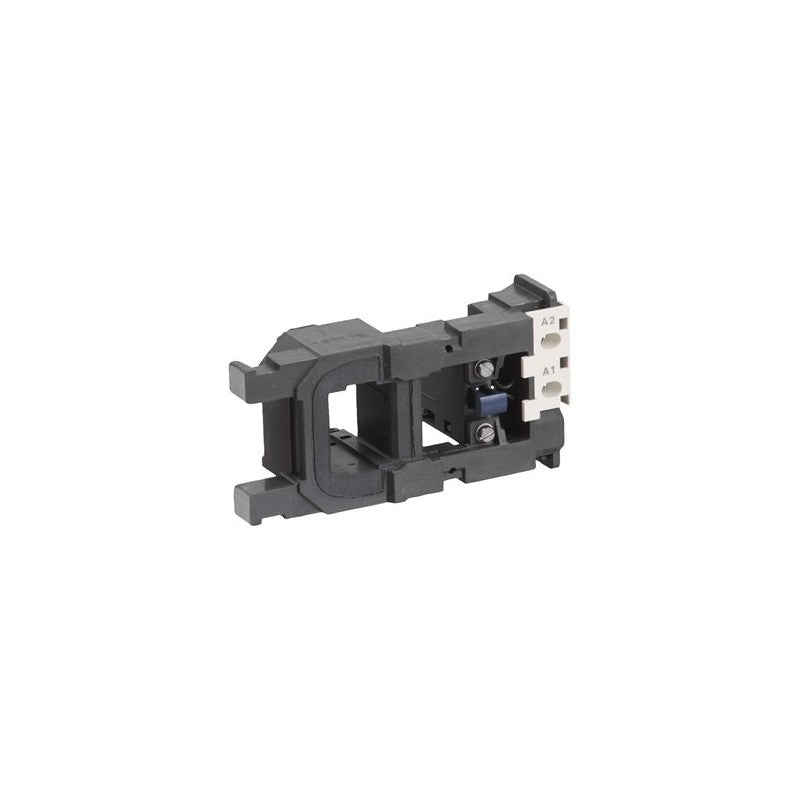

The Schneider Electric TeSys F contactor coil, model LX4FF, is engineered for DC control circuits. This component is integral to the TeSys F family of motor control and protection devices, designed for demanding industrial applications requiring reliable switching. The LX4FF coil operates at a nominal voltage of 125 V DC, ensuring compatibility with specific DC power systems found in automation infrastructure.

Technical details

• Series: TeSys F
• Coil Type: Contactor Coil
• Control Voltage: 125 V DC
• Coil Code: LX4FF
• Functionality: Designed to energize and de-energize the main contacts of a compatible TeSys F contactor.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental operating limits.
• Mounting Type: Typically designed for direct integration into TeSys F contactor assemblies.
• Insulation Voltage: Refer to the specific TeSys F contactor datasheet for detailed insulation specifications.

Applications & compatibility

This LX4FF contactor coil is commonly utilized in industrial automation systems where DC control power is prevalent. Applications include motor control circuits for pumps, fans, and conveyors, as well as control panels for machinery in sectors such as material handling, water treatment, and building automation. It is designed to be compatible with specific Schneider Electric TeSys F contactor frames.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FF125 Schneider Electric coil or contact our technical team for cross-reference assistance with compatible TeSys F contactor components.
