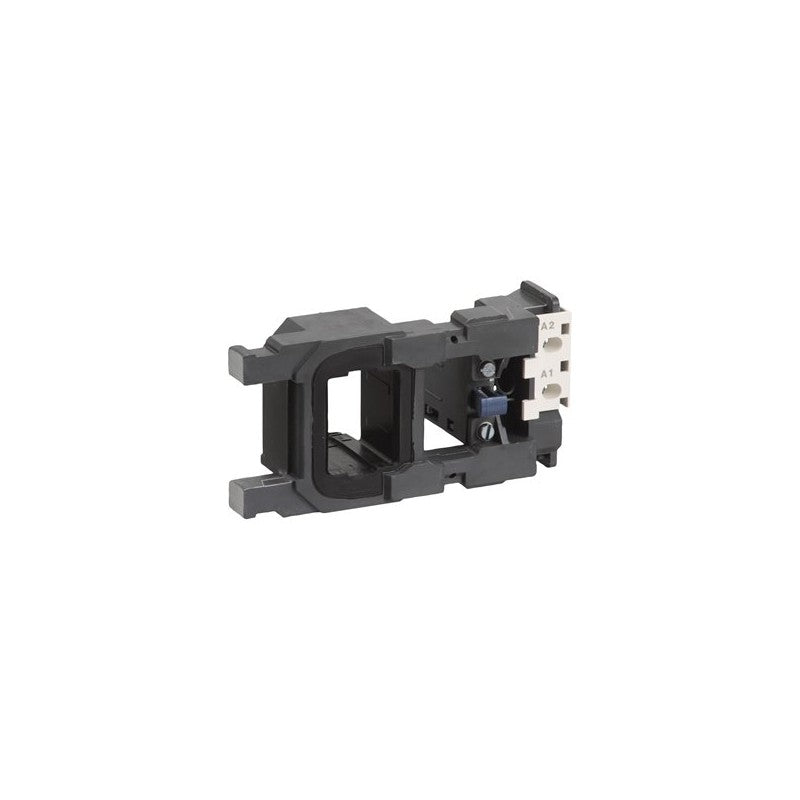

The Schneider Electric TeSys F contactor coil, model LX4FG125, is engineered for DC control circuits. This component is integral to the TeSys F family of motor control and protection devices, designed for demanding industrial applications requiring reliable switching. Its specific voltage rating ensures compatibility with standard DC power systems found in automation environments.

Technical details

• Series: TeSys F
• Coil Voltage: 125 V DC
• Control Circuit Type: DC
• Contact Configuration Compatibility: Designed for use with TeSys F contactors, typically rated for high power applications. Specific contactor model compatibility should be verified against the TeSys F series datasheet.
• Operating Temperature Range: Refer to Schneider Electric TeSys F series documentation for precise operating temperature specifications.
• Mounting Type: Typically designed for direct mounting onto compatible TeSys F contactor bodies.
• Coil Consumption: Specific power consumption (in Watts) for the LX4FG125 coil should be confirmed via the manufacturer's technical documentation.
• Insulation Voltage: Refer to the main contactor's specifications for overall system insulation ratings.

Applications & compatibility

This LX4FG125 coil is commonly utilized in heavy-duty industrial motor control applications where DC control power is available. It is suitable for use in systems such as large pump drives, industrial fans, material handling equipment, and other machinery requiring robust and reliable contactor operation within the TeSys F ecosystem.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FG125 coil or contact our technical team for cross-reference assistance with compatible TeSys F components.
