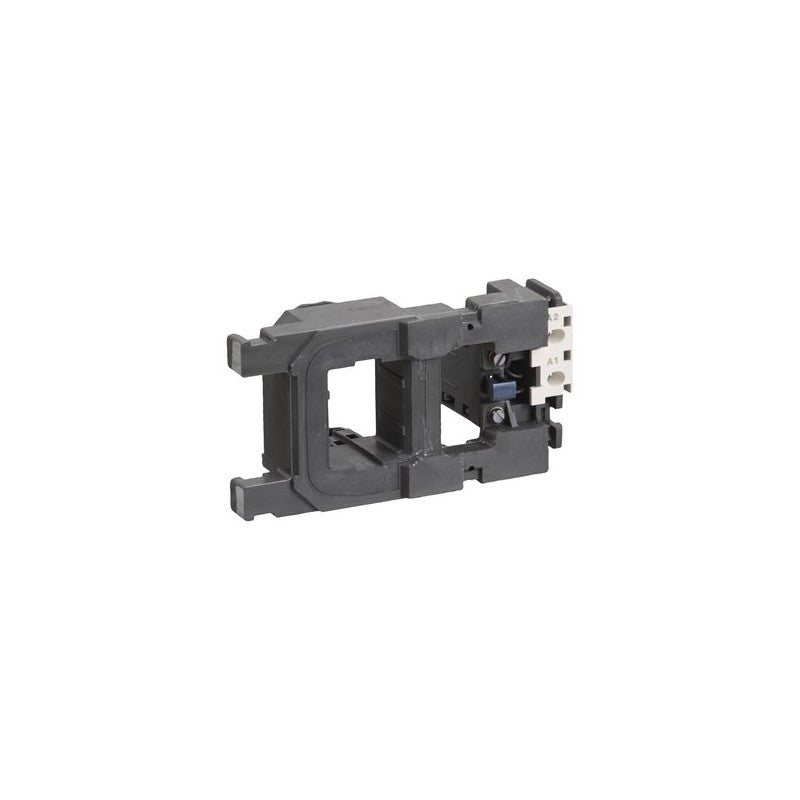

The Schneider Electric TeSys F contactor coil, model LX4FH, is engineered for DC control circuits. This component is a critical part of the TeSys F series, known for its robust design and reliability in demanding industrial environments. It is specifically designed to operate with a 110 V DC control voltage, ensuring precise activation of the associated contactor for power switching applications.

Technical details

• Series: TeSys F
• Coil Voltage: 110 V DC
• Type: Contactor Coil
• Control Circuit Voltage Type: DC
• Mounting Type: Designed for integration with TeSys F contactors.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental operating limits.
• Insulation Voltage: Refer to the full TeSys F contactor specifications for system-level insulation ratings.
• Duty Cycle: Suitable for continuous or intermittent duty as per contactor application requirements.

Applications & compatibility

This LX4FH coil is integral to the operation of TeSys F contactors used in a wide array of industrial automation systems. Applications include motor control, power distribution, and load switching in sectors such as material handling, HVAC systems, and process control equipment. It is compatible with the full range of TeSys F contactors designed for 110 V DC coil operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FH110 or contact our technical team for cross-reference assistance with compatible TeSys F components.
