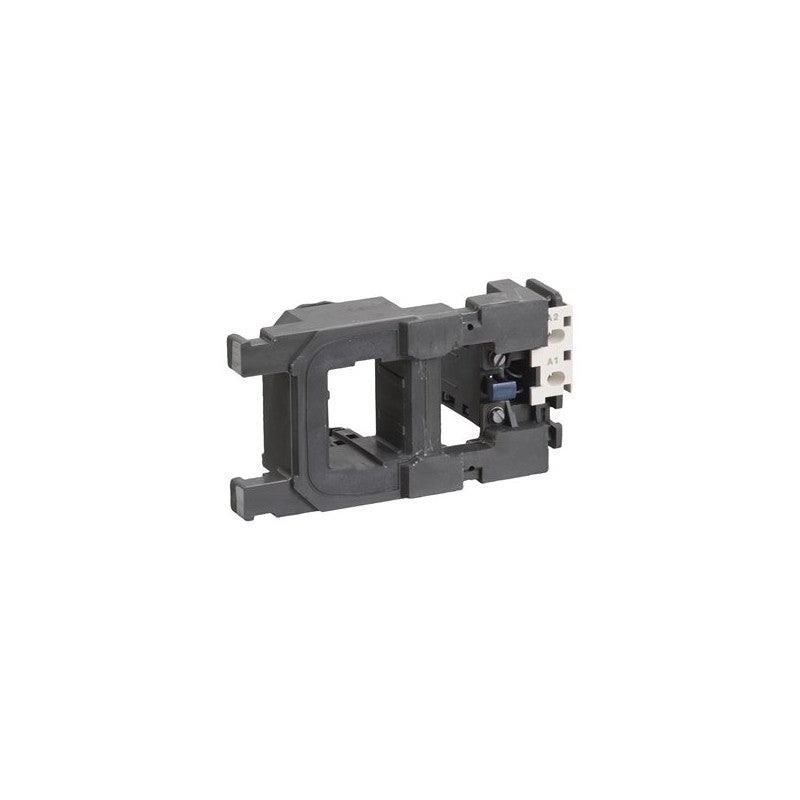

The Schneider Electric TeSys F contactor coil, model LX4FH, is designed for DC control circuits. This coil operates at a nominal voltage of 125 V DC, providing reliable switching for heavy-duty applications. It is a key component within the TeSys F family, known for its robust construction and suitability for demanding industrial environments.

Technical details

• Series: TeSys F
• Coil Voltage: 125 V DC
• Control Circuit Type: DC
• Contact Configuration Compatibility: Designed for use with TeSys F contactors, typically rated for high power applications. Specific contactor ratings should be verified against the full contactor datasheet.
• Mounting Type: Designed for integration into TeSys F contactor assemblies.
• Operating Temperature Range: Refer to the Schneider Electric TeSys F contactor datasheet for specific operating temperature limits.
• Insulation Voltage: Refer to the Schneider Electric TeSys F contactor datasheet for specific insulation voltage ratings.
• Coil Consumption: Specific power consumption (in Watts) for the LX4FH coil should be confirmed via the manufacturer's datasheet.

Applications & compatibility

This LX4FH contactor coil is integral to Schneider Electric's TeSys F series, commonly employed in motor control applications requiring high power switching capabilities. It is suitable for use in heavy industry sectors such as mining, material handling, and water treatment, where robust and reliable control is paramount. Ensure compatibility with the specific TeSys F contactor frame size and rating for your application.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FH125 Schneider Electric coil or contact our technical team for cross-reference assistance with compatible TeSys F components.
