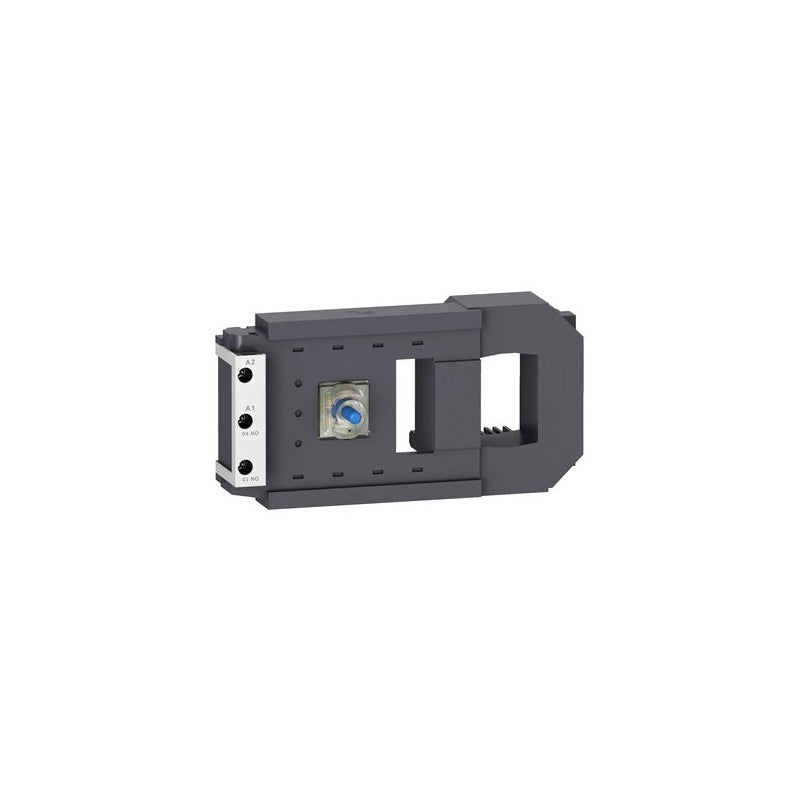

The Schneider Electric TeSys F contactor coil, model LX4FL, is designed for DC control circuits. This coil operates at a nominal voltage of 220 V DC, providing reliable actuation for TeSys F series contactors. It is a critical component for switching high-power loads in demanding industrial environments, ensuring precise control and safety in automated systems.

Technical details

• Series: TeSys F
• Coil Type: Contactor Coil
• Control Voltage: 220 V DC
• Actuation: DC operated
• Compatibility: Designed for use with Schneider Electric TeSys F series contactors. Specific contactor model compatibility should be verified against the contactor datasheet.
• Mounting: Typically designed for plug-in or screw mounting within compatible TeSys F contactor frames. Refer to contactor documentation for precise mounting details.
• Insulation: Standard industrial insulation suitable for DC control circuits.

Applications & compatibility

This LX4FL contactor coil is integral to the operation of TeSys F contactors, commonly found in heavy-duty industrial applications. These include motor control for large machinery, power distribution systems, and high-power switching applications in sectors such as material handling, mining, and water treatment. Its robust design ensures dependable performance in environments requiring frequent switching cycles.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX4FL220 or contact our technical team for cross-reference assistance with compatible TeSys F components.
