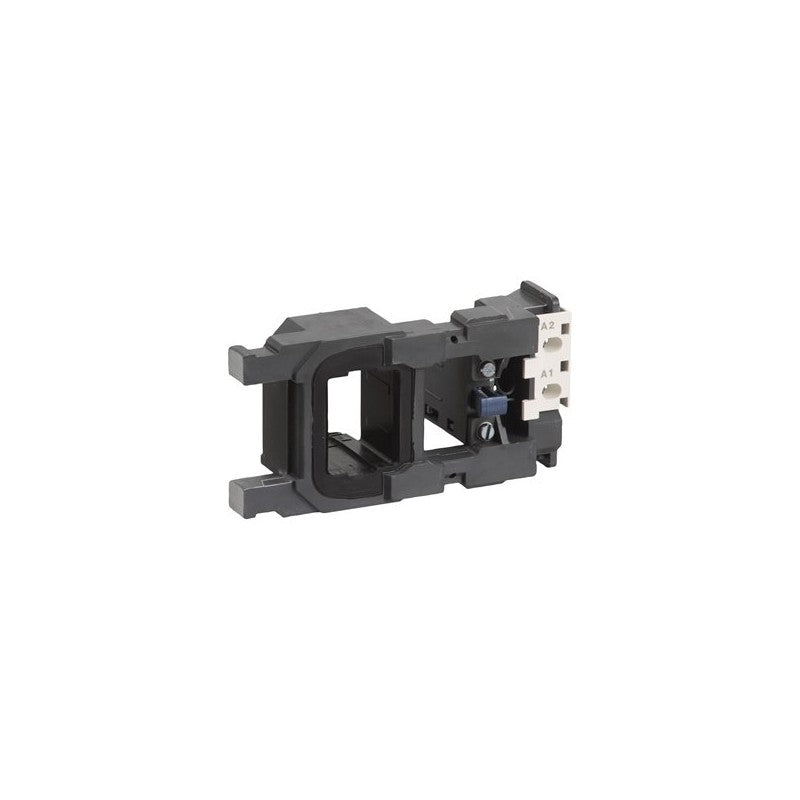

The Schneider Electric TeSys F contactor coil, model LX9FG220, is engineered for low consumption applications within the 40 to 400 Hz frequency range. This specific coil is designed to operate with a nominal voltage of 220 to 230 V AC, providing reliable switching control for TeSys F contactors. Its inclusion in the TeSys F range signifies its role in robust motor control and power switching solutions.

Technical details

• Series: TeSys F
• Coil Type: Specific Contactor Coil
• Nominal Voltage: 220...230 V AC
• Frequency Range: 40...400 Hz
• Consumption: Low
• Control Type: AC
• Mounting Type: Integrated into TeSys F contactor body
• Operating Temperature Range: Verify against manufacturer datasheet for precise environmental limits.

Applications & compatibility

This LX9FG220 coil is integral to the operation of Schneider Electric TeSys F contactors, commonly deployed in industrial motor control circuits. Applications include starting, stopping, and reversing three-phase motors in machinery such as pumps, fans, compressors, and material handling equipment. It is compatible with the corresponding TeSys F contactor frames designed for this coil specification.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX9FG220 or contact our technical team for cross-reference assistance with compatible TeSys F components.
