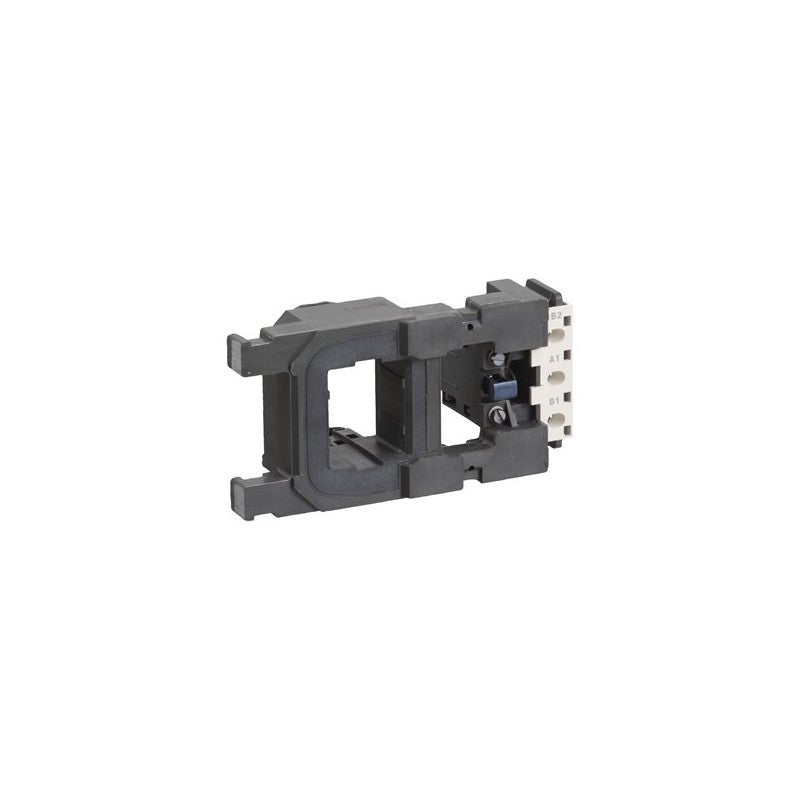

The Schneider Electric TeSys F series LX9FH2202 is a specific contactor coil designed for low-consumption applications. This coil operates within a voltage range of 220 to 230 Volts AC and is compatible with frequencies from 40 to 400 Hz. It is engineered to provide reliable switching performance in demanding industrial environments, commonly found in motor control circuits and power distribution systems.

Technical details

• Series: TeSys F
• Coil Type: Specific Contactor Coil
• Voltage Rating: 220...230 V AC
• Frequency Range: 40...400 Hz
• Consumption: Low
• Control Circuit Type: AC
• Mounting Type: Integrated into TeSys F contactors
• Terminal Type: Screw terminals for control circuit connection

Applications & compatibility

This LX9FH2202 coil is integral to the operation of Schneider Electric TeSys F contactors, which are widely utilized in motor control applications across various industries. It is suitable for use in machine tools, material handling systems, HVAC equipment, and other industrial machinery requiring robust and dependable motor starting and stopping capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LX9FH2202 or contact our technical team for cross-reference assistance with compatible TeSys F components.
