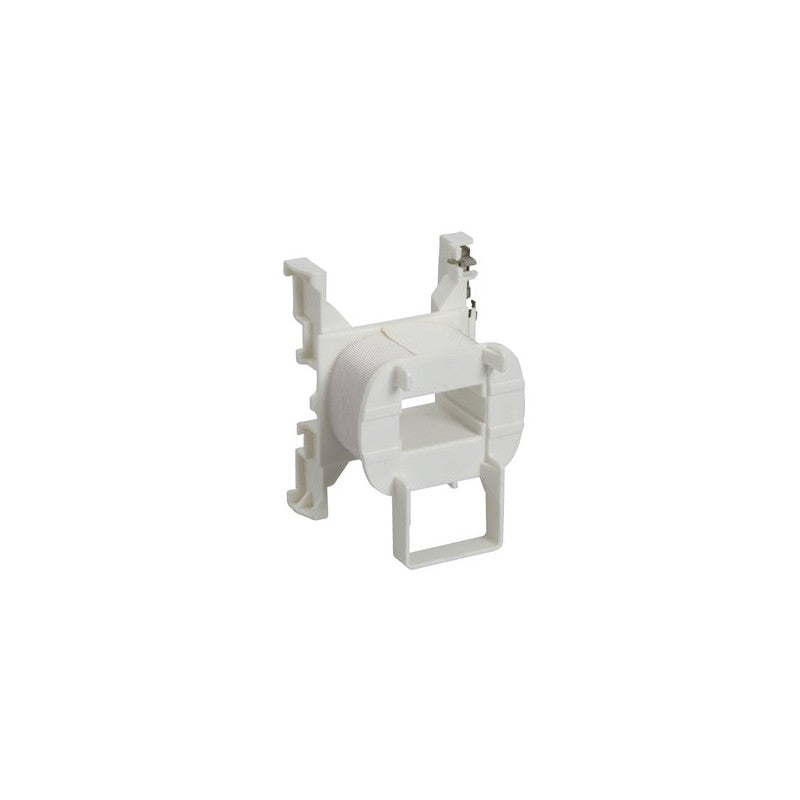

The Schneider Electric TeSys D LXD1B7 is a contactor coil designed for control applications within industrial automation systems. This coil operates at 24V AC and is engineered to be compatible with TeSys D contactors rated for 9 to 38 Amps. It serves as a critical component for switching power circuits in various machinery and control panels.

Technical details

• Series: TeSys D
• Coil Voltage: 24V AC
• Coil Frequency: 50/60 Hz
• Compatible Contactor Current Rating: 9 A to 38 A
• Control Circuit Type: AC
• Coil Type: LXD1
• Insulation Voltage: Verify with manufacturer datasheet for specific rating.
• Operating Temperature Range: Verify with manufacturer datasheet for specific range.

Applications & compatibility

This LXD1B7 contactor coil is commonly integrated into motor control circuits for applications such as conveyor systems, pump controls, and HVAC equipment. Its compatibility with the TeSys D series ensures seamless integration into existing Schneider Electric control architectures found in manufacturing plants, building automation, and material handling operations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LXD1B7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
