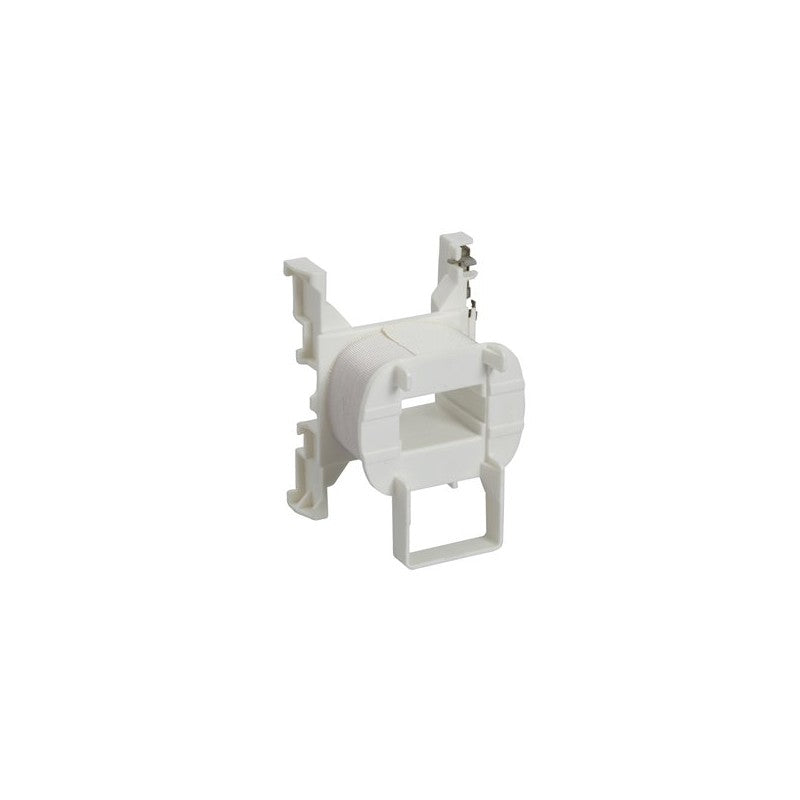

The Schneider Electric TeSys D LXD1F7 is a contactor coil designed for reliable operation in demanding industrial environments. This coil is engineered to control contactors within the TeSys D series, specifically those rated for 9 to 38 Amperes. Its AC voltage rating ensures compatibility with standard industrial power supplies, making it a suitable component for various motor control applications.

Technical details

• Series: TeSys D
• Coil Type: Contactor Coil
• Voltage Rating: 110 V AC
• Frequency: 50/60 Hz
• Compatible Contactor Amperage Range: 9 A to 38 A
• Control Circuit Voltage: 110 VAC
• Coil Consumption: Refer to manufacturer datasheet for specific wattage.
• Mounting Type: Designed for integration into TeSys D contactor assemblies.

Applications & compatibility

This LXD1F7 contactor coil is integral to motor control circuits found in a wide array of industrial machinery. It is commonly utilized in applications such as conveyor systems, pump controls, fan units, and general motor starters within manufacturing plants, processing facilities, and building automation systems. Ensure compatibility with your specific TeSys D contactor model and control voltage requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LXD1F7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
