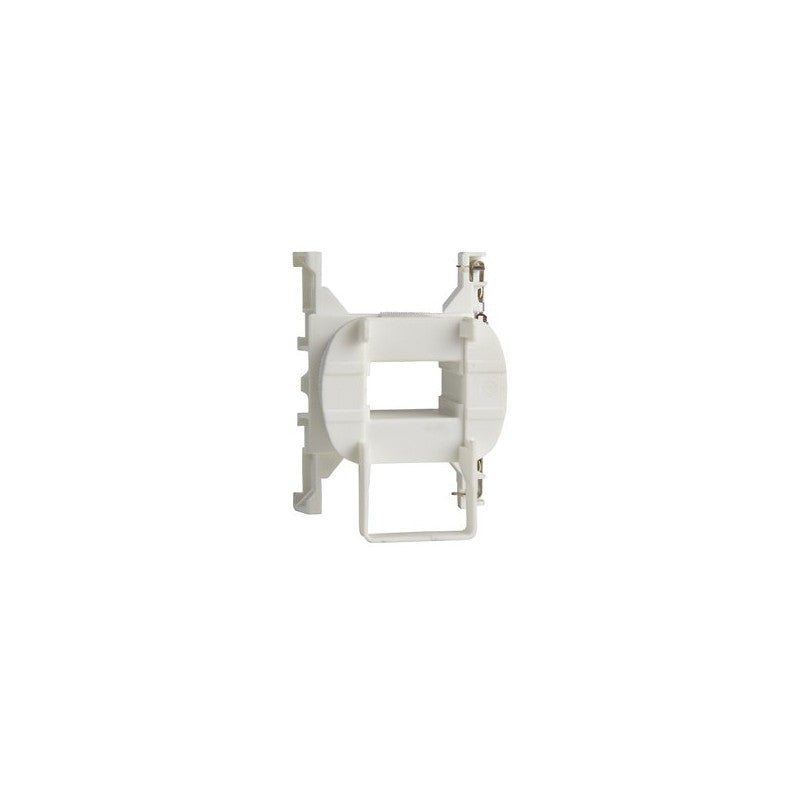

The Schneider Electric TeSys D LXD1J7 is a contactor coil designed to operate with contactors rated for 9 to 38 Amperes. This coil provides the necessary electromagnetic force to close the main contacts of the associated TeSys D contactor, enabling control of motor loads and other power circuits. It is engineered for reliable switching operations within industrial automation systems.

Technical details

• Series: TeSys D
• Coil Type: Contactor Coil
• Control Voltage: 12 V AC
• Frequency: 50/60 Hz
• Compatible Contactor Amperage Range: 9 A to 38 A
• Coil Identification Code: LXD1
• Insulation Class: Verify against manufacturer datasheet for specific rating.
• Operating Temperature Range: Verify against manufacturer datasheet for specific range.

Applications & compatibility

This LXD1J7 coil is specifically designed for use with Schneider Electric TeSys D series contactors. It is commonly found in motor control applications across various industries, including manufacturing, material handling, and HVAC systems. Ensure compatibility with your existing TeSys D contactor frame size and rating before installation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LXD1J7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
