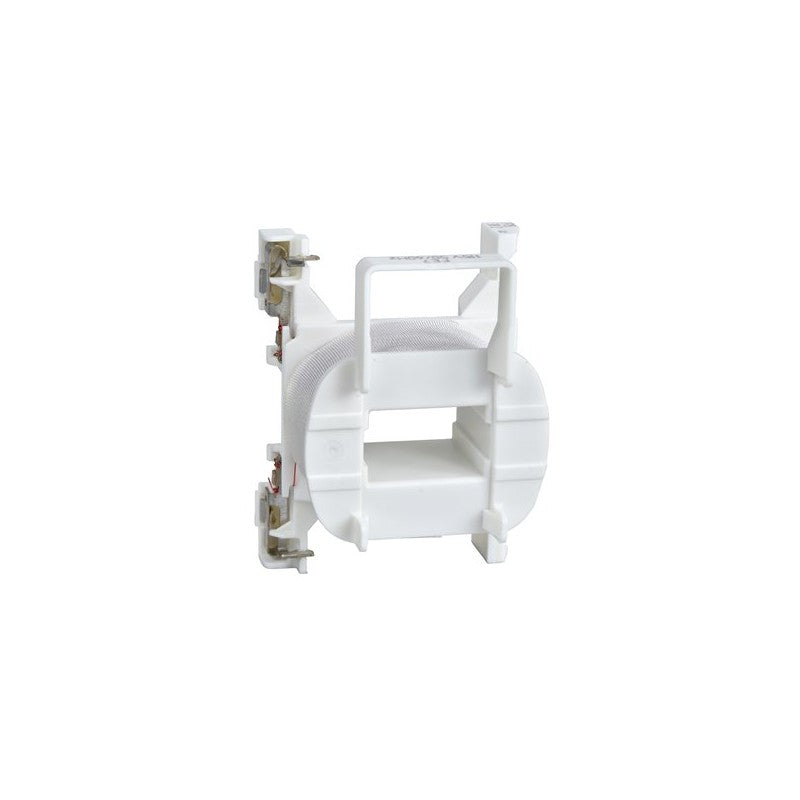

The Schneider Electric LXD1Y7 is a TeSys D series contactor coil designed for controlling motor loads. This coil operates within a specified AC voltage range, making it suitable for integration into various industrial control panels and machinery. Its robust construction ensures reliable performance in demanding environments.

Technical details

• Series: TeSys D
• Contactor Coil Type: LXD1
• Voltage Rating: 690 V AC
• Frequency: 50/60 Hz
• Compatible Contactor Amperage Range: 9 A to 38 A
• Coil Control Voltage: 690 V AC
• Insulation Voltage: 690 V AC

Applications & compatibility

This LXD1Y7 contactor coil is commonly utilized in motor control circuits for applications such as conveyor systems, pump controls, and HVAC systems. It is designed to be compatible with Schneider Electric TeSys D series contactors within the specified current ratings, ensuring seamless integration into existing control architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LXD1Y7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
