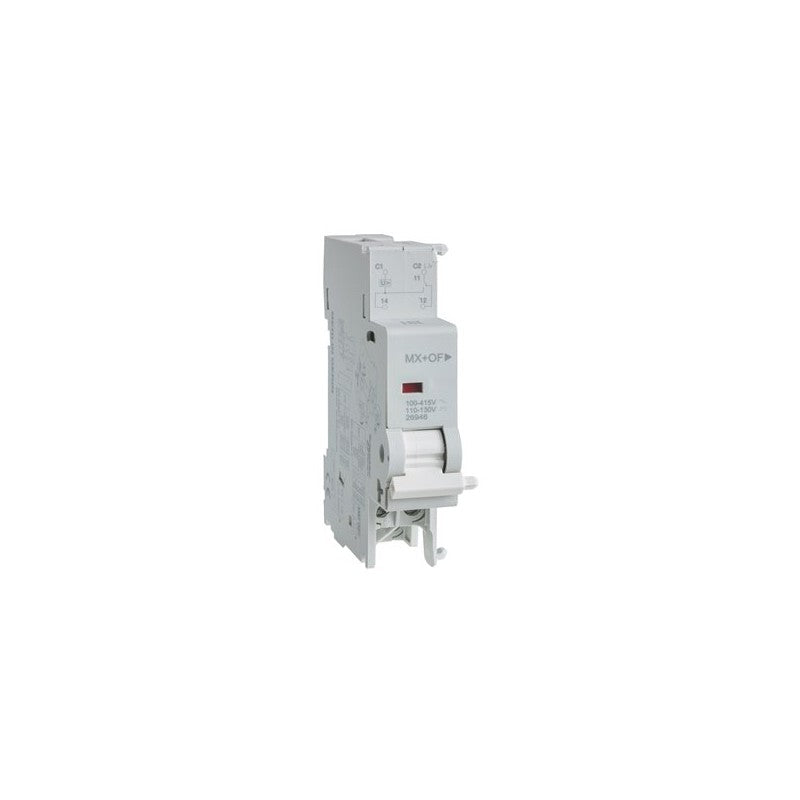

Part of the Schneider Electric Multi 9 series, the M9A26946 is a shunt trip release accessory designed for circuit breaker integration. This unit incorporates Overcurrent (OC) functionality, indicated by the "+ OF" designation, and operates with both AC and DC voltage inputs. It is engineered to provide remote tripping capabilities and fault detection for enhanced electrical system safety and control.

Technical details

• Series: Multi 9
• Accessory Type: Shunt Trip Release with Overcurrent (OC) Function
• AC Voltage Rating: 110/415 V AC
• DC Voltage Rating: 110/130 V DC
• Functionality: Remote tripping and overcurrent detection
• Integration: Designed for use with compatible Schneider Electric Multi 9 circuit breakers
• Control Input: Requires specific voltage for shunt trip activation
• Fault Indication: Integrated overcurrent detection provides fault signaling

Applications & compatibility

This shunt trip release is commonly employed in industrial control panels and electrical distribution systems requiring remote circuit breaker operation or automatic tripping upon overcurrent events. It is suitable for applications such as motor control centers, power distribution units, and automated machinery where precise fault management is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9A26946 or contact our technical team for cross-reference assistance with compatible Multi 9 accessories.
