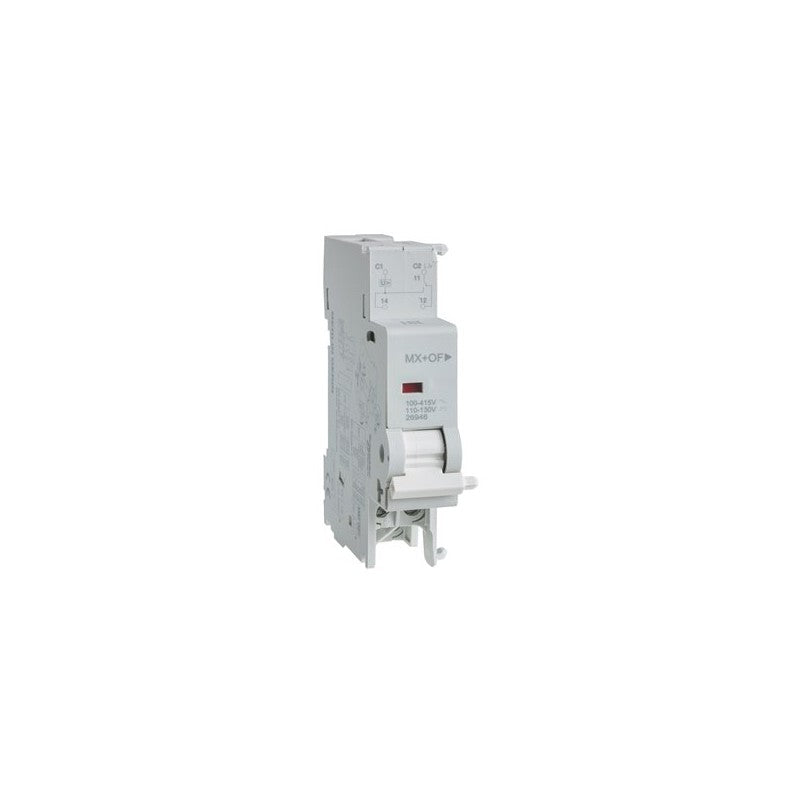

The Schneider Electric Multi 9 M9A26947 is a shunt trip release designed for circuit breaker control applications. This accessory integrates with Multi 9 circuit breakers to provide remote tripping functionality. It features an auxiliary contact for signaling the trip status.

Technical details

• Series: Multi 9
• Accessory Type: Shunt Trip Release with OC (Opening Coil) Contact
• Operating Voltage: 48V AC / 48V DC
• Functionality: Enables remote tripping of compatible circuit breakers.
• Integrated Contact: Includes an OC contact for trip status indication.
• Compatibility: Designed for use with specific Schneider Electric Multi 9 circuit breaker frames. Verify compatibility with your specific breaker model.
• Control Signal: Requires a 48V AC or 48V DC control signal to initiate a trip.

Applications & compatibility

This shunt trip release is commonly employed in control panels and electrical distribution systems where remote circuit breaker operation is required. Applications include motor control centers, building automation systems, and industrial machinery requiring emergency stop or remote disconnect capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9A26947 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
