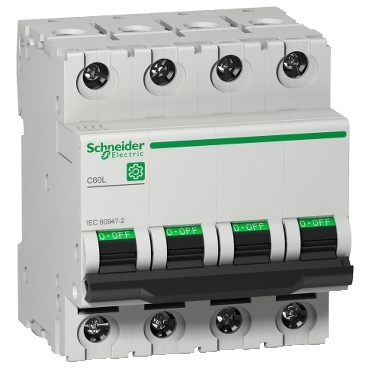

The Schneider Electric Multi9 C60L Miniature Circuit Breaker (MCB) is a 4-pole device designed for robust overcurrent protection in industrial electrical systems. This specific unit, the M9F17416, features a 16A current rating and a C curve tripping characteristic, making it suitable for applications where moderate inrush currents are expected, such as motor control circuits. Its construction adheres to IEC/EN 60947-2 standards, ensuring reliable performance in demanding environments.

Technical details

• Series: Multi9 C60L
• Poles: 4
• Current Rating: 16A
• Trip Curve: C Curve
• Breaking Capacity: 25kA (IEC/EN 60947-2)
• Voltage Compatibility: Buyers should verify specific voltage ratings against the manufacturer's datasheet, as this is not explicitly encoded in the provided part number for this series.
• Terminal Type: Screw terminals are standard for this series, facilitating secure connections.
• Mounting: Designed for DIN rail mounting, common in industrial control panels.

Applications & compatibility

This Schneider Electric MCB is commonly deployed in control panels for machinery such as packaging equipment, conveyor systems, and HVAC units. Its 4-pole configuration makes it ideal for protecting three-phase circuits, offering comprehensive protection for motors and other three-phase loads. It is designed to integrate seamlessly into standard industrial electrical distribution systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F17416 or contact our technical team for cross-reference assistance with compatible Multi9 C60L components.
