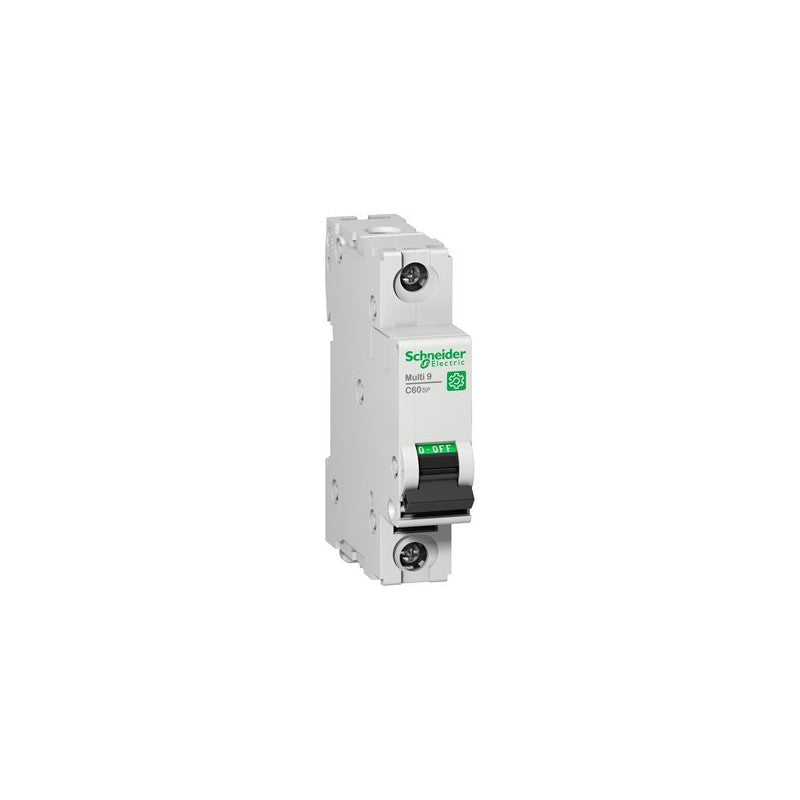

The Schneider Electric Multi 9 C60SP is a miniature circuit breaker (MCB) designed for reliable circuit protection in demanding industrial environments. This single-pole (1P) device features a C-curve tripping characteristic, indicating its suitability for applications with moderate inrush currents, such as motor loads. It is rated for a maximum voltage of 277V AC and a short-circuit breaking capacity of 5 kA, conforming to UL 1077 supplementary protector standards.

Technical details

• Series: Multi 9 C60SP
• Number of Poles: 1P
• Current Rating: 45 A
• Trip Curve: C Curve
• Voltage Rating: 277 V AC
• Short-Circuit Breaking Capacity: 5 kA
• Standard Compliance: UL 1077
• Type: Miniature Circuit Breaker (MCB)

Applications & compatibility

This MCB is commonly employed as a supplementary protector in control panels, machinery, and electrical distribution systems where precise overcurrent and short-circuit protection is essential. Its specifications make it suitable for protecting circuits in applications such as HVAC systems, lighting controls, and smaller motor circuits within manufacturing facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F22145 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
