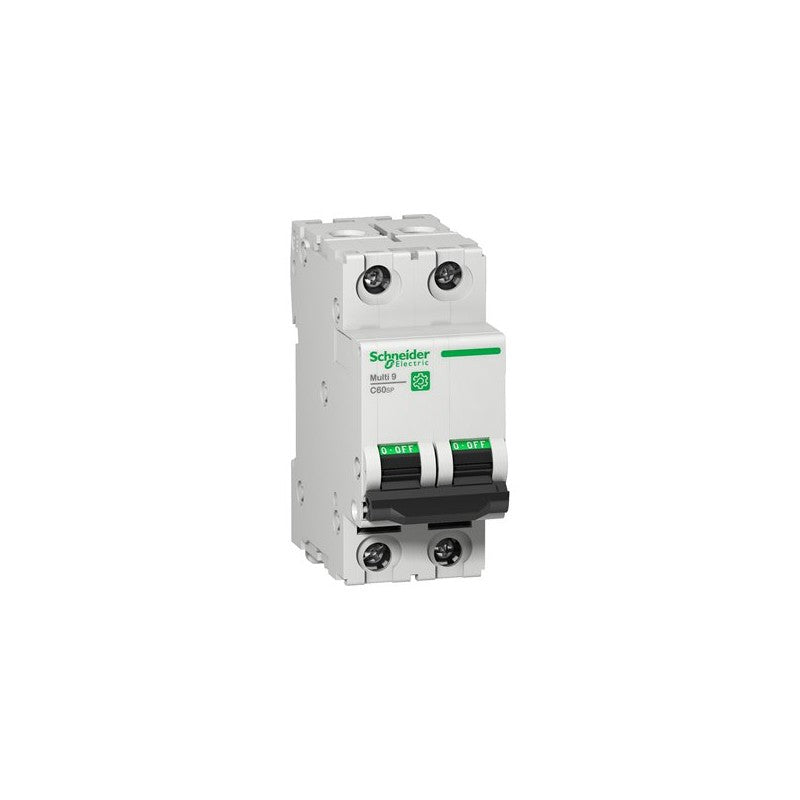

The Schneider Electric Multi 9 C60SP Miniature Circuit Breaker (MCB) is a 2-pole device designed for circuit protection in industrial and commercial electrical systems. This specific unit features a C-curve tripping characteristic, indicating its suitability for applications with moderate inrush currents, such as lighting or control circuits. It is rated for 480Y/277 VAC and possesses a 10 kA interrupting capacity, ensuring robust protection against short circuits.

Technical details

• Series: Multi 9 C60SP
• Poles: 2
• Current Rating: 25 A
• Trip Curve: C Curve
• Voltage Rating: 480Y/277 VAC
• Interrupting Capacity: 10 kA
• Standard Compliance: UL 1077
• Enclosure Type: DIN Rail Mountable (typical for this series)

Applications & compatibility

This MCB is commonly employed in control panels, distribution boards, and machinery requiring reliable overcurrent and short-circuit protection. Its UL 1077 listing signifies its use as a supplementary protector in accordance with UL standards, often found in OEM equipment, HVAC systems, and automation control cabinets.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F22225 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
