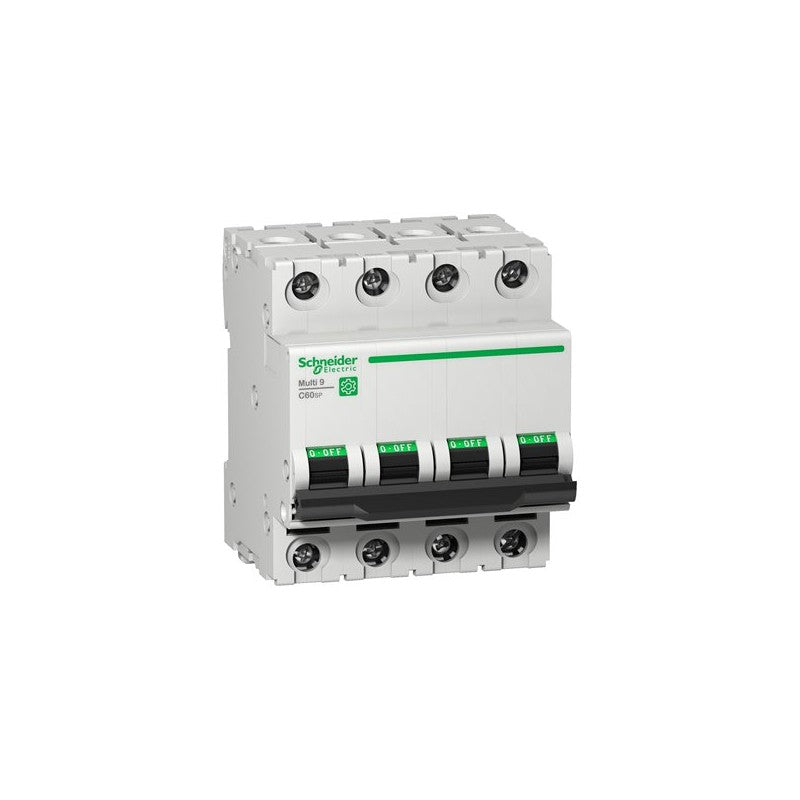

The Schneider Electric Multi 9 C60SP is a 4-pole Miniature Circuit Breaker (MCB) designed for robust circuit protection in demanding industrial environments. This specific unit, identified by the part number M9F22420, features a C-curve tripping characteristic, making it suitable for applications with moderate inductive loads, such as motor control circuits. It is engineered to provide reliable overcurrent and short-circuit protection for electrical distribution systems.

Technical details

• Series: Multi 9 C60SP
• Number of Poles: 4
• Current Rating: 20 A
• Trip Curve: C Curve
• Voltage Rating: 480Y/277 V AC
• Interrupting Capacity: 10 kA
• Standard Compliance: UL 1077
• Enclosure Type: Typically DIN rail mountable, refer to manufacturer datasheet for precise dimensions.

Applications & compatibility

This Schneider Electric MCB is commonly employed in control panels for machinery such as packaging equipment, conveyor systems, and HVAC units. Its 4-pole configuration makes it ideal for protecting three-phase circuits with a neutral conductor, ensuring comprehensive safety across all phases and the neutral line. It is designed for use in systems requiring UL 1077 recognized overcurrent protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F22420 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
