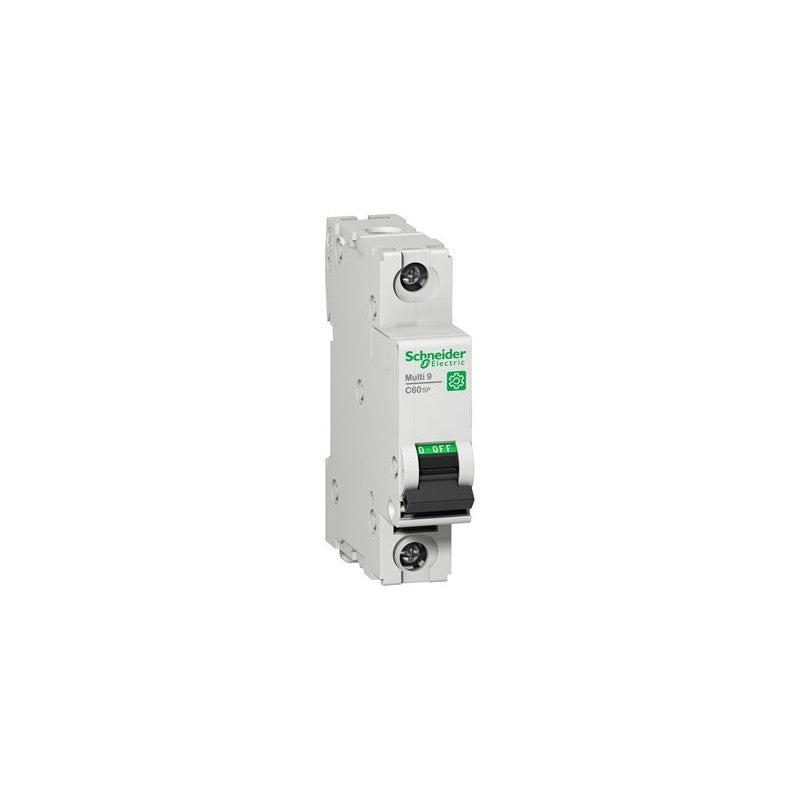

The Schneider Electric Multi 9 C60SP is a Miniature Circuit Breaker (MCB) designed for overcurrent protection in electrical systems. This single-pole (1P) device features a D-curve tripping characteristic, indicating its suitability for applications with high inrush currents, such as motor loads. It is rated for a maximum voltage of 277V AC and a short-circuit breaking capacity of 10 kA, conforming to UL 1077 supplementary protector standards.

Technical details

• Series: Multi 9 C60SP
• Type: Miniature Circuit Breaker (MCB)
• Poles: 1P (Single Pole)
• Current Rating: 20 A
• Trip Curve: D Curve
• Voltage Rating: 277 V AC
• Short-Circuit Breaking Capacity: 10 kA
• Standard Compliance: UL 1077

Applications & compatibility

This MCB is commonly employed in industrial control panels, machinery, and electrical distribution systems where reliable protection against overloads and short circuits is essential. Its D-curve rating makes it particularly well-suited for protecting inductive loads like motors found in packaging lines, material handling equipment, and HVAC systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F23120 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
