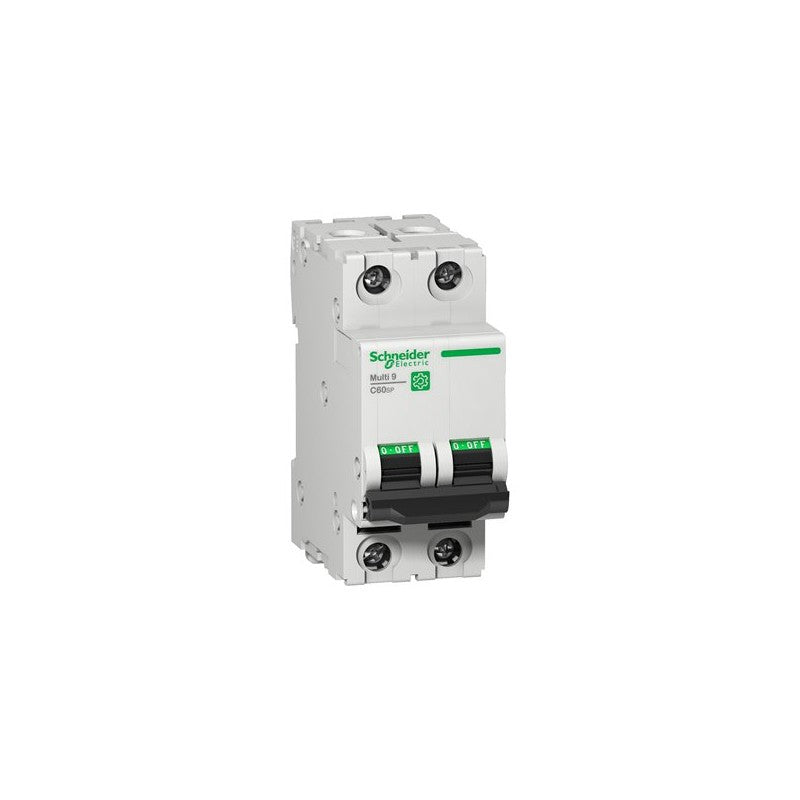

The Schneider Electric Multi 9 C60SP is a Miniature Circuit Breaker (MCB) designed for reliable circuit protection in demanding industrial environments. This 2-pole breaker features a D-curve tripping characteristic, indicating it is suitable for applications with high inrush currents, such as motor loads. It operates at a voltage rating of 480Y/277 VAC and offers a significant interrupting capacity of 10 kA, ensuring safety during fault conditions.

Technical details

• Series: Multi 9 C60SP
• Poles: 2
• Current Rating: 1 Ampere (A)
• Trip Curve: D Curve
• Voltage Rating: 480Y/277 Volts AC (V)
• Interrupting Capacity: 10 kiloamperes (kA)
• Standard Compliance: UL 1077 Recognized
• Construction: Miniature Circuit Breaker (MCB)

Applications & compatibility

This MCB is commonly specified for protecting electrical circuits in machinery and equipment that experience significant motor starting currents. Its D-curve characteristic makes it ideal for use in applications such as motor control circuits, transformer feeders, and other loads with high transient currents. It is designed to meet the rigorous safety and performance standards required in various industrial settings, including manufacturing plants and processing facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F23201 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
