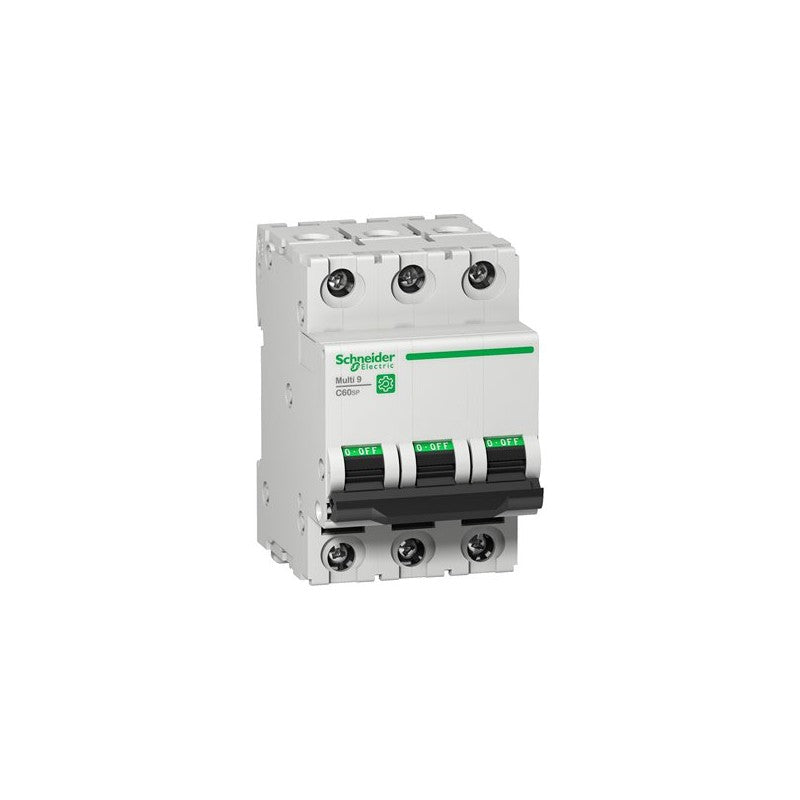

The Schneider Electric Multi 9 C60SP is a Miniature Circuit Breaker (MCB) designed for robust circuit protection in industrial environments. This 3-pole unit features a D-curve tripping characteristic, indicating its suitability for applications with high inrush currents, such as motor loads. It operates within a voltage class of 480Y/277V and offers a significant interrupting capacity of 10 kA, ensuring safety during fault conditions.

Technical details

• Series: Multi 9 C60SP
• Number of Poles: 3
• Current Rating: 2 A
• Trip Curve: D Curve
• Voltage Rating: 480Y/277 V
• Interrupting Capacity: 10 kA
• Compliance Standard: UL 1077
• Type: Miniature Circuit Breaker (MCB)

Applications & compatibility

This MCB is commonly employed in control panels and electrical distribution systems for protecting circuits in machinery such as pumps, fans, and conveyors. Its D-curve rating makes it particularly effective for safeguarding motor circuits where temporary overloads are expected during startup. It is designed for use in applications requiring compliance with UL 1077 standards for supplementary protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F23302 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
