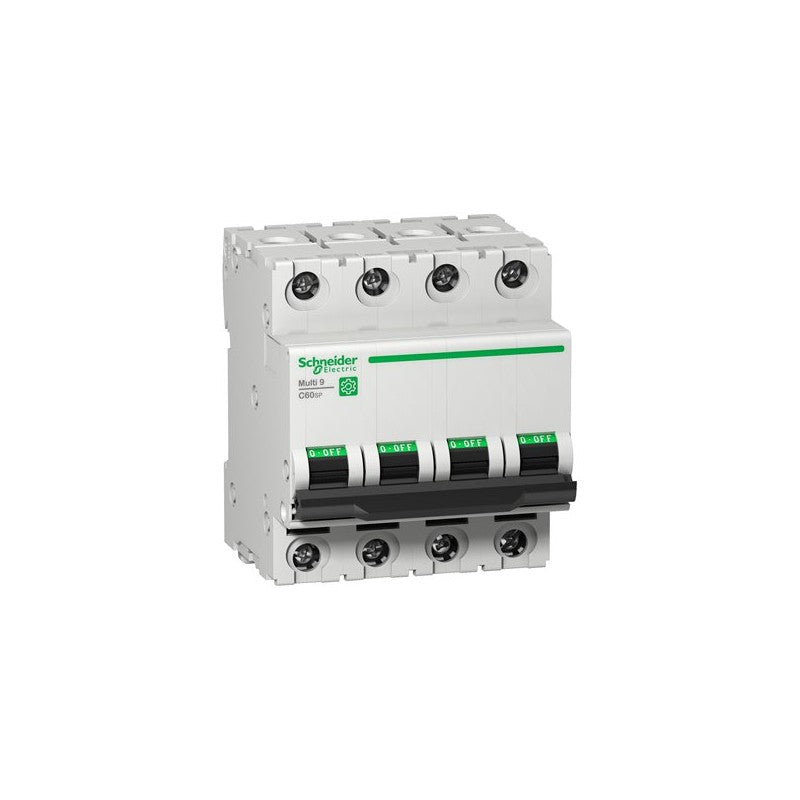

The Schneider Electric Multi 9 C60SP is a 4-pole Miniature Circuit Breaker (MCB) designed for robust circuit protection in industrial environments. This specific unit features a D-curve tripping characteristic, indicating its suitability for applications with high inrush currents, such as motor loads. It operates within a voltage class of 480Y/277V and offers a significant interrupting capacity of 10 kA, making it a reliable choice for safeguarding electrical systems against overcurrents and short circuits.

Technical details

• Series: Multi 9 C60SP
• Number of Poles: 4P
• Current Rating: 2 A
• Trip Curve: D Curve
• Voltage Rating: 480Y/277 V
• Interrupting Capacity: 10 kA
• Compliance: UL 1077
• Type: Miniature Circuit Breaker (MCB)

Applications & compatibility

This MCB is commonly employed in control panels, motor starter circuits, and distribution boards within manufacturing facilities. Its D-curve characteristic makes it particularly well-suited for protecting inductive loads like motors found in conveyor systems, pumps, and HVAC equipment where temporary high starting currents are expected. The 4-pole configuration ensures complete isolation of all phases and the neutral conductor.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F23402 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
