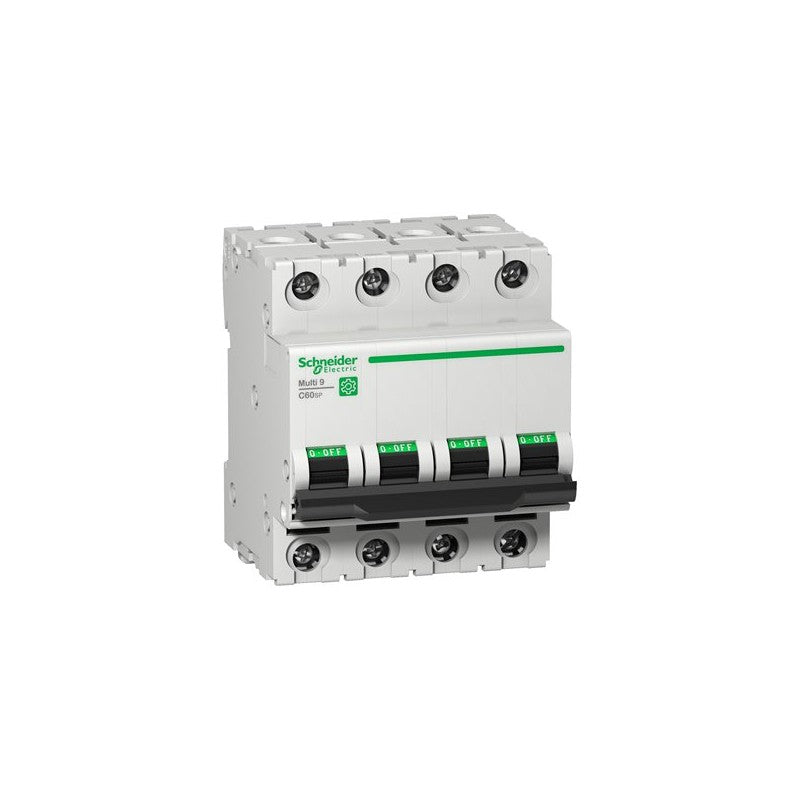

The Schneider Electric Multi 9 C60SP is a 4-pole Miniature Circuit Breaker (MCB) designed for robust circuit protection in industrial environments. This specific unit features a D-curve tripping characteristic, indicating it is intended for applications with high inrush currents, such as motor loads. Its construction supports a maximum system voltage of 480Y/277 VAC, making it suitable for a wide range of power distribution systems.

Technical details

• Series: Multi 9 C60SP
• Number of Poles: 4
• Current Rating: 16 A
• Trip Curve: D Curve
• Voltage Rating: 480Y/277 VAC
• Interrupting Capacity: 10 kA
• Standard Compliance: UL 1077
• Enclosure Type: DIN Rail Mountable (typical for this series)

Applications & compatibility

This Schneider Electric MCB is commonly employed in control panels and power distribution systems for machinery requiring protection against overcurrents and short circuits. Its D-curve rating makes it particularly well-suited for protecting inductive loads like motors found in conveyor systems, pumps, and HVAC equipment. It is designed to integrate seamlessly into standard industrial electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F23416 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
