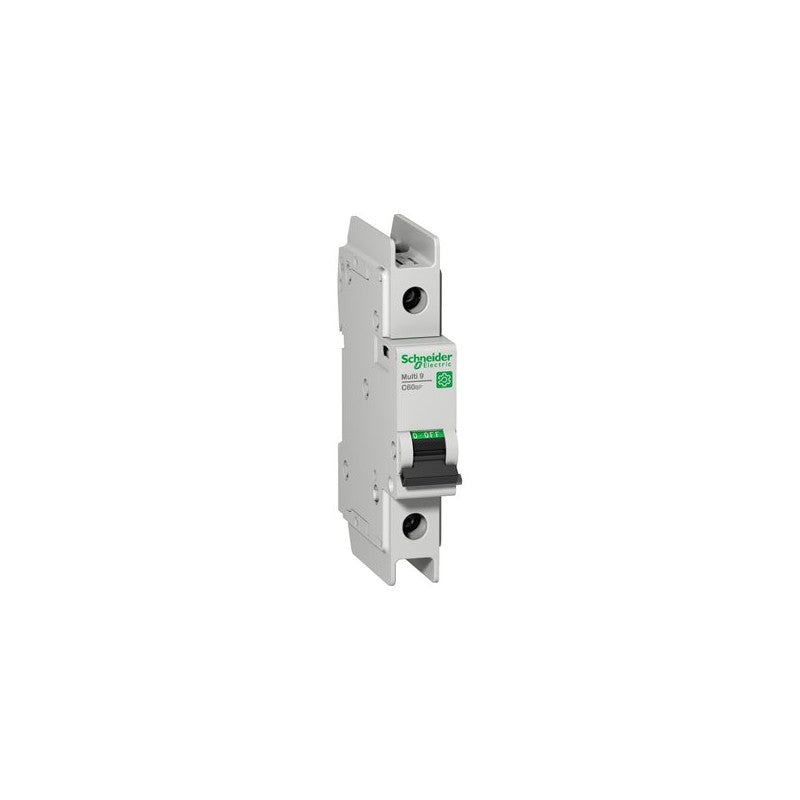

The Schneider Electric Multi 9 C60BP Miniature Circuit Breaker (MCB) is a single-pole device designed for reliable circuit protection in demanding industrial environments. This specific unit, rated for 5 Amperes and featuring a D-curve tripping characteristic, is engineered to safeguard electrical circuits from overcurrents and short circuits. Its robust construction and adherence to UL 489 standards make it suitable for integration into various control panels and power distribution systems.

Technical details

• Series: Multi 9 C60BP
• Number of Poles: 1P
• Current Rating: 5 A
• Trip Curve: D Curve
• Voltage Rating: 277 V AC
• Interrupting Capacity: 10 kA
• Certifications: UL 489
• Application: Branch circuit protection

Applications & compatibility

This Schneider Electric MCB is commonly employed in applications requiring robust overcurrent protection for individual circuits, such as within control cabinets for manufacturing equipment, HVAC systems, and lighting circuits. Its D-curve characteristic makes it suitable for circuits with high inrush currents, like those found in motor control applications, ensuring reliable operation without nuisance tripping.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F43105 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
