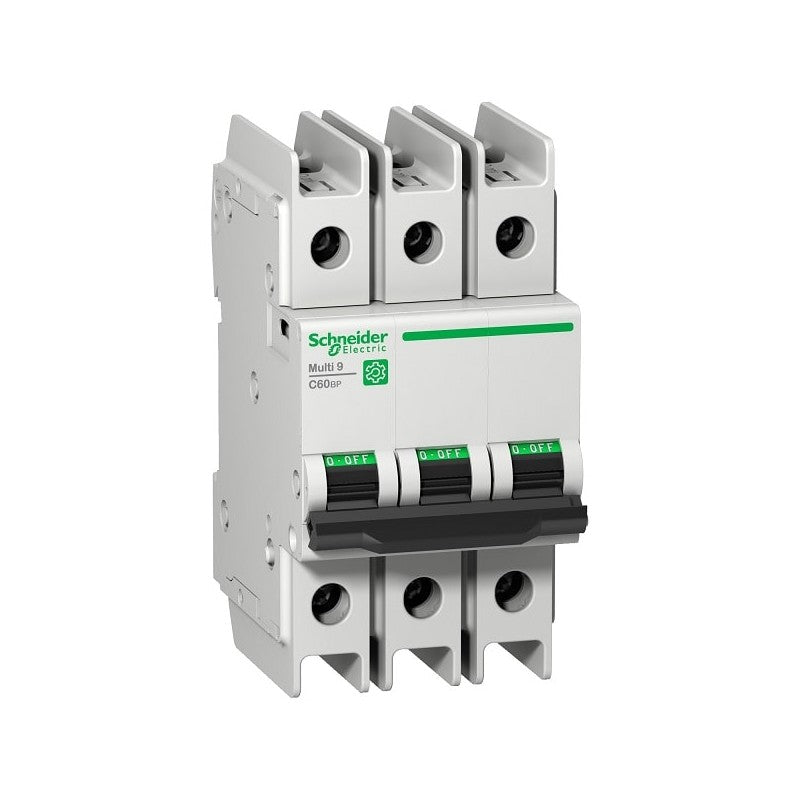

The Schneider Electric Multi 9 C60BP is a 3-pole Miniature Circuit Breaker (MCB) designed for robust circuit protection in industrial environments. This unit features a D-curve tripping characteristic, indicating it is optimized for applications with high inrush currents, such as motor loads. It operates at a nominal voltage of 240V and offers a significant interrupting capacity of 10 kA, ensuring safety and reliability.

Technical details

• Series: Multi 9 C60BP
• Poles: 3
• Current Rating: 63 A
• Trip Curve: D Curve
• Voltage Rating: 240 V AC
• Interrupting Capacity: 10 kA
• Compliance: UL 489 listed
• Type: Miniature Circuit Breaker (MCB)

Applications & compatibility

This MCB is suitable for protecting electrical circuits in a variety of industrial settings, including motor control centers, power distribution panels, and machinery requiring protection against overcurrents and short circuits. Its D-curve characteristic makes it particularly well-suited for applications involving inductive loads like motors, transformers, and solenoids where temporary high starting currents are expected.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9F43363 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
