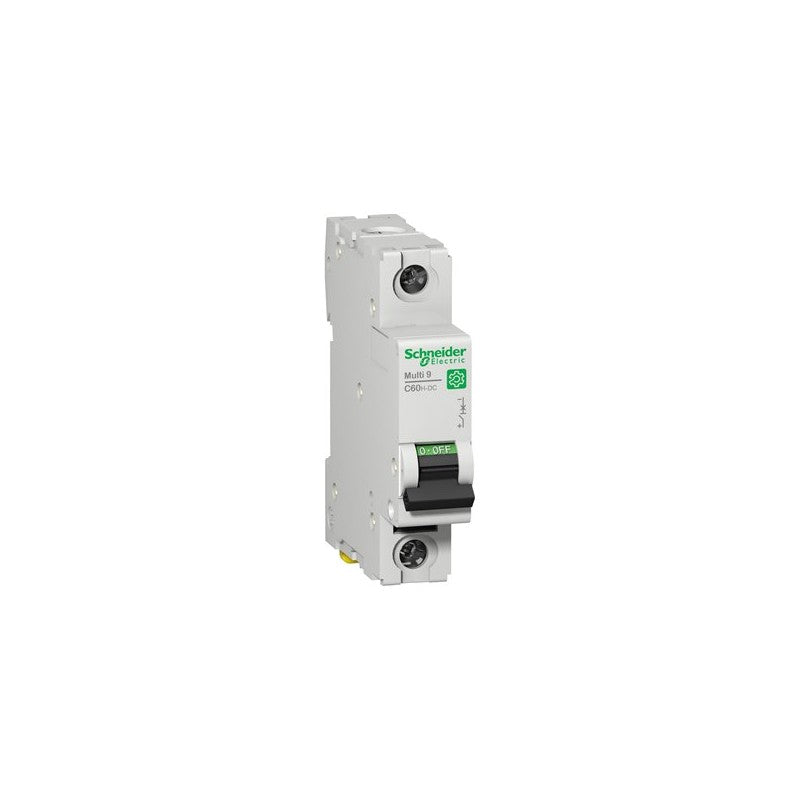

The Schneider Electric Multi 9 C60H-DC is a single-pole Miniature Circuit Breaker (MCB) designed for DC power distribution and protection. This unit is part of the established Multi 9 series, known for its reliability in demanding electrical environments. It is engineered to provide overcurrent protection for DC circuits, commonly found in renewable energy systems, industrial control panels, and specialized DC power supplies.

Technical details

• Series: Multi 9 C60H-DC
• Poles: 1P (Single Pole)
• Current Rating: 1 Ampere (A)
• Trip Curve: C Curve (typically for inductive loads, tripping between 5-10 times the rated current)
• Voltage Rating: 250 Volts DC (V DC)
• Interrupting Capacity: 10 kiloamperes (kA)
• Application: DC circuit protection
• Connection Type: Screw terminals for secure wiring

Applications & compatibility

This Schneider Electric MCB is suitable for applications requiring reliable DC circuit interruption, such as solar inverter DC input/output, battery bank protection, and control power circuits in automation systems. It is compatible with standard DIN rail mounting systems, facilitating integration into existing electrical enclosures and distribution boards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9U21101 or contact our technical team for cross-reference assistance with compatible Multi 9 DC components.
