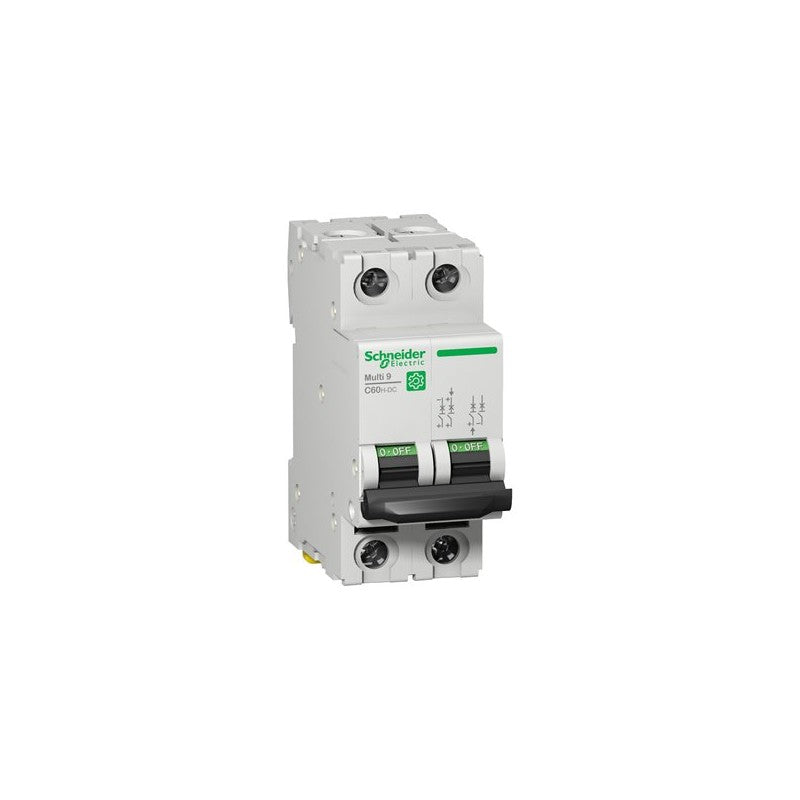

Part of the Schneider Electric Multi 9 series, the C60H-DC Miniature Circuit Breaker (MCB) is engineered for DC power distribution and protection. This 2-pole device features a D-curve tripping characteristic, designed to handle high inrush currents common in DC motor applications. It is rated for 500 V DC and a nominal current of 16 A, providing robust circuit interruption capabilities.

Technical details

• Series: Multi 9 C60H-DC
• Type: Miniature Circuit Breaker (MCB)
• Poles: 2
• Rated Current: 16 A
• Tripping Curve: D Curve
• Rated Voltage: 500 V DC
• Breaking Capacity: 10 kA
• Application: DC power circuits, motor protection

Applications & compatibility

This MCB is suitable for use in DC power systems found in various industrial settings, including renewable energy installations, DC motor control panels, and specialized DC equipment. Its D-curve rating makes it ideal for protecting circuits with inductive loads that experience significant temporary current surges during startup, such as DC motors in conveyor systems, pumps, and automation machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9U31216 or contact our technical team for cross-reference assistance with compatible Multi 9 DC components.
