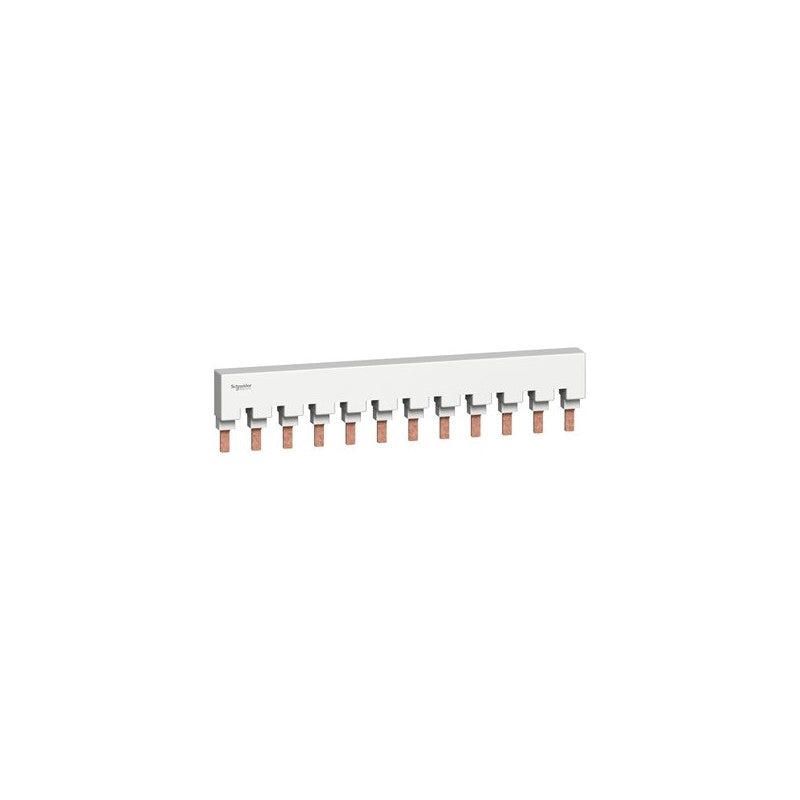

The Schneider Electric Multi 9 comb busbar is engineered for efficient power distribution within electrical panels. This specific model, designated M9XUP212, is designed for a 2-pole (2L) configuration, facilitating the connection of multiple circuit breakers or devices. Its modular design and precise pitch ensure organized and reliable wiring in demanding industrial environments.

Technical details

• Series: Multi 9
• Product Type: Comb Busbar
• Configuration: 2-Pole (2L)
• Module Pitch: 18 mm
• Number of Modules: 12
• Current Rating: 115 A
• Connection Type: Fork type (typical for comb busbars, verify with datasheet)
• Insulation Voltage: Refer to manufacturer datasheet for specific rating

Applications & compatibility

This comb busbar is commonly utilized in electrical distribution boards and control panels for applications requiring compact and organized power splitting. It is suitable for use with compatible Schneider Electric Multi 9 miniature circuit breakers and other modular devices, ensuring seamless integration within the Multi 9 system for panel building and machine control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the M9XUP212 or contact our technical team for cross-reference assistance with compatible Multi 9 components.
