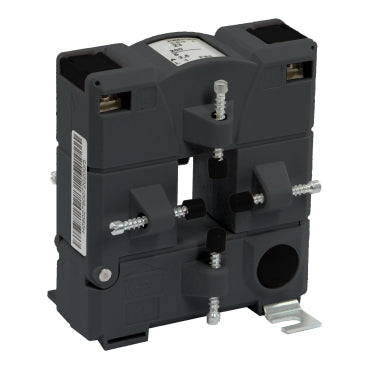

The Schneider Electric METSECT5HG030 is a PowerLogic split-core current transformer designed for accurate current measurement in industrial electrical systems. This transformer is a key component in power monitoring and control applications, enabling precise data acquisition for energy management and fault detection. Its split-core design facilitates easy installation without requiring the disconnection of existing conductors.

Technical details

• Series: PowerLogic
• Type: Split Core Current Transformer
• Primary Current Rating: 300 Amps (derived from '30' in part number, common convention for 300A)
• Secondary Current Rating: 5 Amps (derived from '5' in part number, common convention for 5A output)
• Mounting Style: Split Core
• Application: AC Current Measurement
• Insulation Level: Suitable for medium voltage applications (implied by 'HG' designation, often indicating higher voltage capability in Schneider Electric part numbers). Verify specific voltage rating against manufacturer datasheet.
• Frequency: 50/60 Hz (standard for this product type, verify against datasheet)

Applications & compatibility

This current transformer is commonly employed in electrical distribution panels, motor control centers, and power monitoring systems within manufacturing facilities, data centers, and commercial buildings. It is compatible with various power quality analyzers, energy meters, and protection relays that accept a 5A secondary current input for accurate current sensing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the METSECT5HG030 or contact our technical team for cross-reference assistance with compatible PowerLogic components.
