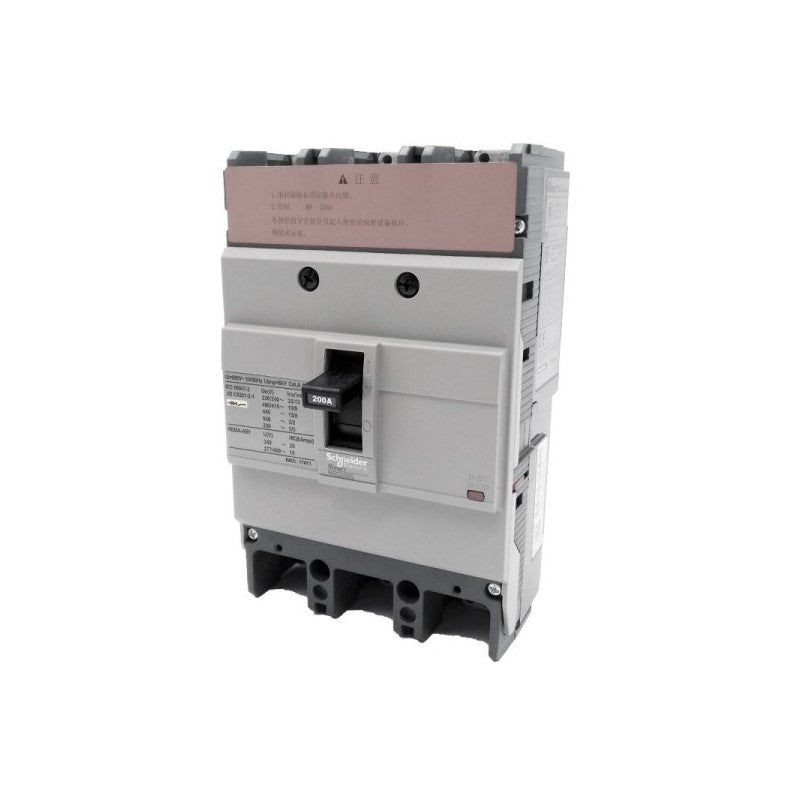

The Schneider Electric NSC250S3225N is a molded case circuit breaker designed for robust electrical protection in industrial environments. As part of the Schneider Electric PowerLogic series, this breaker offers reliable performance for safeguarding electrical circuits against overcurrents and short circuits. It is commonly integrated into power distribution panels and motor control centers within manufacturing facilities.

Technical details

• Series: PowerLogic
• Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: 250A
• Trip Unit Type: Electronic (indicated by 'S' in part number, typically meaning adjustable thermal-magnetic or electronic trip)
• Number of Poles: 3 (indicated by '3' in part number)
• Voltage Rating: 600V AC (indicated by '600' in part number, common for this frame size and series)
• Interrupting Rating: 25kA at 600V AC (indicated by '25' in part number, common for this frame size and series)
• Terminal Type: Screw terminals (common for this series and frame size)

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial applications, including motor protection, feeder protection, and branch circuit protection. It is compatible with standard Schneider Electric switchgear and panelboard systems, providing a reliable component for power distribution and control in sectors such as food and beverage processing, water treatment, and general manufacturing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the NSC250S3225N or contact our technical team for cross-reference assistance with compatible PowerLogic components.
