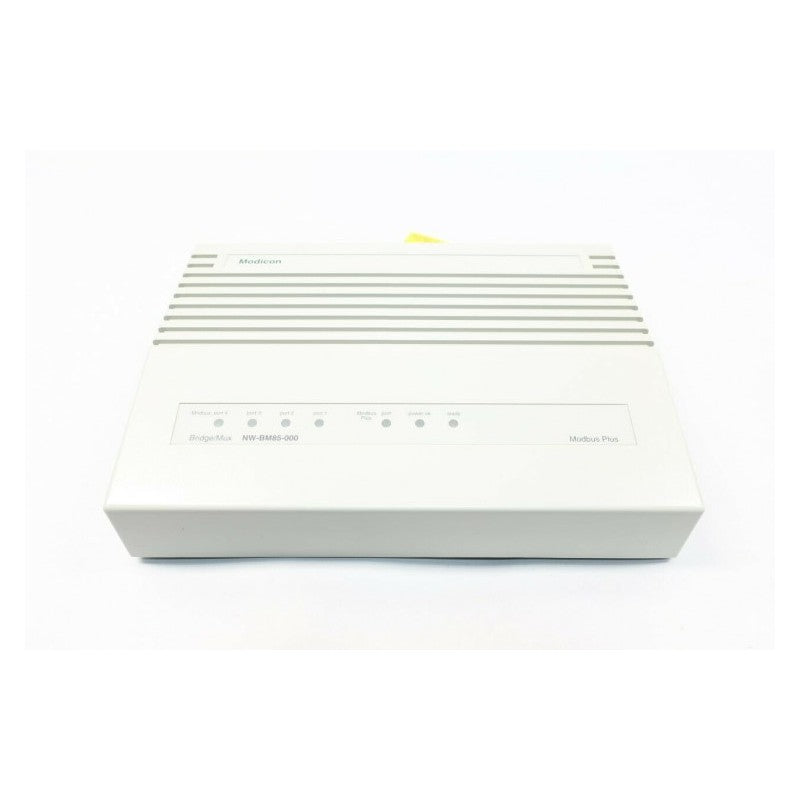

The Schneider Electric NW-BM85-000 serves as a MODBUS PLUS BRIDGE MULTIPLEXER, facilitating communication between different network segments. This device is designed to operate within industrial automation environments, bridging MODBUS PLUS networks to enable data exchange and system expansion. Its functionality is critical for integrating disparate control systems and extending the reach of existing automation infrastructure.

Technical details

• Product Type: MODBUS PLUS BRIDGE MULTIPLEXER
• Manufacturer Series: Identified by the "NW-BM" prefix, indicating a specific Schneider Electric communication module series.
• Power Input: Operates on either 115 VAC or 230 VAC, providing flexibility for diverse power supply configurations.
• Communication Protocol: Primarily supports MODBUS PLUS, a high-speed token-passing master/slave network protocol.
• Functionality: Acts as a bridge and multiplexer, allowing for the connection of multiple MODBUS PLUS drops or segments.
• Network Segmentation: Enables the division of a MODBUS PLUS network into smaller, manageable segments, potentially improving performance and fault isolation.
• Data Throughput: Designed to handle the specific data rates and messaging structures of the MODBUS PLUS protocol.
• Environmental Rating: While not explicitly stated, industrial automation components typically feature robust construction for demanding environments. Buyers should verify specific environmental specifications against the manufacturer's datasheet.

Applications & compatibility

This MODBUS PLUS BRIDGE MULTIPLEXER is commonly deployed in legacy and modern industrial control systems requiring robust communication solutions. It is particularly useful in applications such as manufacturing plants, process control facilities, and material handling systems where MODBUS PLUS networks are prevalent. Its bridging capability allows for the expansion and interconnection of existing automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the NW-BM85-000 or contact our technical team for cross-reference assistance with compatible Schneider Electric communication components.
