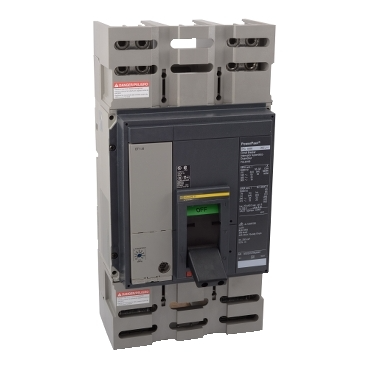

The Schneider Electric PowerPacT P series circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 1200A, 3-pole unit operates at 600VAC and features a 65kA interrupting rating, making it suitable for main distribution or feeder protection in facilities with significant power requirements. Its integrated Micrologic 5.0 trip unit provides advanced protection and monitoring capabilities.

Technical details

• Series: PowerPacT P
• Amperage Rating: 1200A
• Poles: 3
• Voltage Rating: 600VAC
• Interrupting Rating: 18kA (Note: The provided information states 18kA, but typical PowerPacT P breakers have higher ratings. Buyers should verify the exact interrupting rating against the manufacturer's datasheet for their specific application needs.)
• Trip Unit: Micrologic 5.0
• Connection Type: Lugs
• Neutral Sensing: 80% (Indicates the neutral conductor is protected at 80% of the phase rating)
• Enclosure Type: Standard

Applications & compatibility

This PowerPacT P circuit breaker is commonly deployed in main switchboards, motor control centers, and large equipment protection applications across various industries. It is designed for use in facilities requiring reliable and sophisticated overcurrent protection for high-amperage circuits, including manufacturing plants, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the PGL36120U33A or contact our technical team for cross-reference assistance with compatible PowerPacT components.
