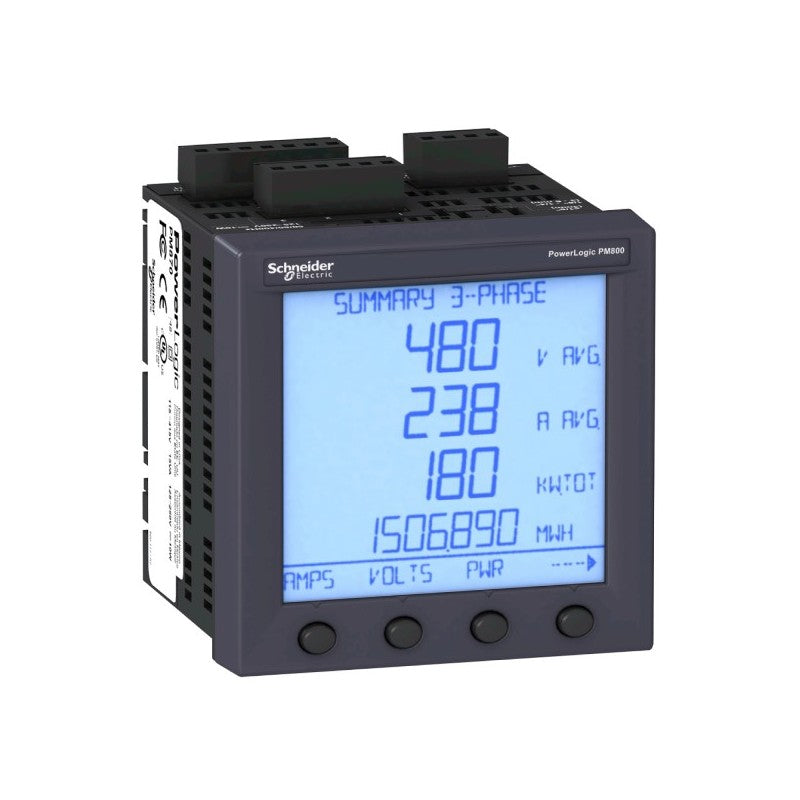

The Schneider Electric PM810MG is a power meter designed for comprehensive electrical system monitoring. As part of the Schneider Electric PowerLogic series, this unit provides detailed energy measurement capabilities. Its integrated display facilitates direct on-site data visualization, making it suitable for panel installations requiring immediate feedback on power quality and consumption.

Technical details

• Series: PowerLogic
• Model: PM810
• Display: Integrated digital display
• Measurement Capabilities: Capable of measuring key electrical parameters including voltage, current, power (kW, kVA, kVAr), power factor, and frequency.
• Voltage Input: Supports a wide range of input voltages; consult the manufacturer's datasheet for specific nominal voltage ratings and operating ranges.
• Current Input: Designed for use with external current transformers (CTs); refer to the datasheet for compatible CT ratios and maximum current ratings.
• Communication: Features a communication port for data logging and integration into building management systems or SCADA networks. Specific protocol details (e.g., Modbus RTU) should be verified via the datasheet.
• Form Factor: Panel-mount design, typically for installation in electrical enclosures or control panels.

Applications & compatibility

This power meter is commonly deployed in commercial and industrial facilities to monitor energy usage and identify potential power quality issues. Applications include sub-metering in manufacturing plants, monitoring energy consumption in data centers, and ensuring power quality compliance in building management systems. It is compatible with various electrical distribution systems and can integrate with SCADA and energy management platforms.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the PM810MG or contact our technical team for cross-reference assistance with compatible PowerLogic metering components.
