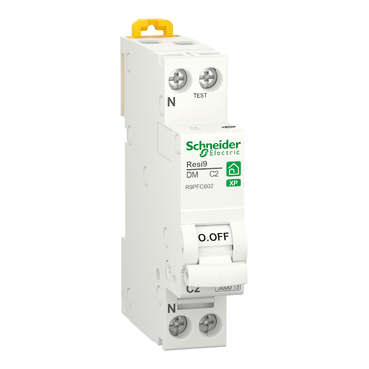

The Schneider Electric Resi9 R9PFC602 is a single-pole plus neutral modular circuit breaker designed for reliable overcurrent protection in electrical distribution systems. This C-curve breaker is suitable for applications requiring a specific tripping characteristic to protect circuits from faults and overloads. Its paintable design allows for integration into various panel aesthetics.

Technical details

• Series: Resi9
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 2 Amperes (A)
• Trip Curve: Type C
• Breaking Capacity: To be verified against manufacturer datasheet for specific fault current interruption rating (kA).
• Voltage Rating: To be verified against manufacturer datasheet for AC and DC voltage ratings.
• Terminal Type: Screw terminals for secure conductor connection.
• Mounting: DIN rail mountable for standard industrial enclosures.

Applications & compatibility

This Resi9 circuit breaker is commonly employed in residential, commercial, and light industrial electrical panels for the protection of lighting circuits, socket outlets, and small motor loads. It is compatible with standard DIN rail mounting systems found in most electrical enclosures, ensuring straightforward installation and replacement.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFC602 or contact our technical team for cross-reference assistance with compatible Resi9 components.
