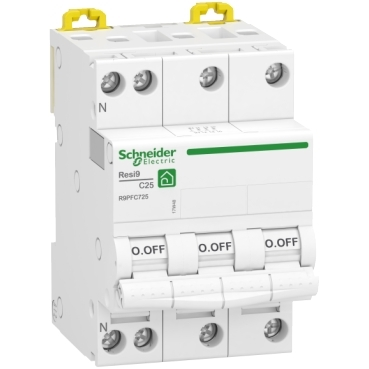

The Schneider Electric Resi9 Resi9 XP DM MCB is a Miniature Circuit Breaker designed for robust electrical protection in demanding environments. This specific unit, part of the Resi9 XP DM series, features a 3+N pole configuration and a 25A current rating with a Type C tripping curve, suitable for applications requiring protection against overcurrents and short circuits. Its 400V AC operational voltage and 3000A breaking capacity ensure reliable performance in industrial settings.

Technical details

• Series: Resi9 XP DM
• Configuration: 3+N Pole
• Current Rating: 25A
• Tripping Curve: Type C
• Voltage Rating: 400V AC
• Breaking Capacity: 3000A
• Product Type: Miniature Circuit Breaker (MCB)

Applications & compatibility

This Schneider Electric MCB is commonly employed in electrical distribution panels for commercial and industrial facilities, providing essential circuit protection for lighting, heating, and motor loads. Its Type C characteristic makes it suitable for circuits with moderate inrush currents, such as those found in small motor applications or control circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFC725 or contact our technical team for cross-reference assistance with compatible Resi9 components.
