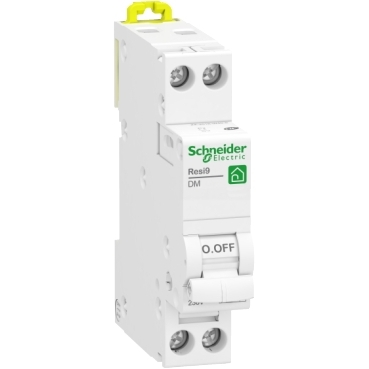

The Schneider Electric Resi9 R9PF MCB is a single-pole Miniature Circuit Breaker designed for reliable overcurrent protection in electrical distribution systems. This unit is part of the Resi9 family, engineered for demanding industrial environments. It provides essential safety by interrupting circuits when fault currents exceed its rated capacity.

Technical details

• Series: Resi9 R9PF
• Poles: 1P (Single Pole)
• Current Rating: 16A
• Voltage Rating: 230V AC
• Breaking Capacity: 3000 A (3kA)
• Type: Miniature Circuit Breaker (MCB)
• Trip Curve: Not specified; consult manufacturer datasheet for details.
• Terminal Type: Not specified; consult manufacturer datasheet for details.

Applications & compatibility

This 16A MCB is suitable for protecting individual circuits in a variety of industrial settings, including control panels, machinery power feeds, and lighting circuits. It is designed to integrate seamlessly into standard DIN rail mounting systems commonly found in industrial automation cabinets and electrical enclosures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFD616 or contact our technical team for cross-reference assistance with compatible Resi9 components.
