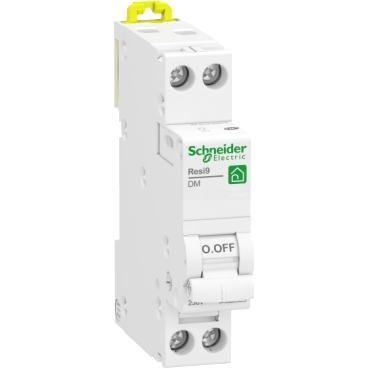

The Schneider Electric Resi9 XP DM MCB is a Miniature Circuit Breaker designed for overcurrent protection in electrical installations. This specific unit, part of the Resi9 series, features a 1+N pole configuration and a Type D tripping curve, indicating its suitability for applications with high inrush currents, such as motor loads. It operates at a nominal voltage of 230V AC and offers a breaking capacity of 3000 Amperes.

Technical details

• Series: Resi9 XP DM
• Configuration: 1+N Pole (1 Pole + Neutral)
• Current Rating: 20 Amperes
• Tripping Curve: Type D
• Voltage Rating: 230V AC
• Breaking Capacity: 3000 A
• Frequency: 50/60 Hz (typical for this voltage class, verify with datasheet)
• Terminal Type: Screw terminals (typical for this series, verify with datasheet)

Applications & compatibility

This Schneider Electric MCB is commonly employed in residential, commercial, and light industrial settings for protecting circuits that feed inductive loads. Applications include safeguarding circuits for small motors, transformers, and lighting systems where significant starting currents are expected. It is designed to integrate seamlessly into standard DIN rail mounting systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFD620 or contact our technical team for cross-reference assistance with compatible Resi9 components.
