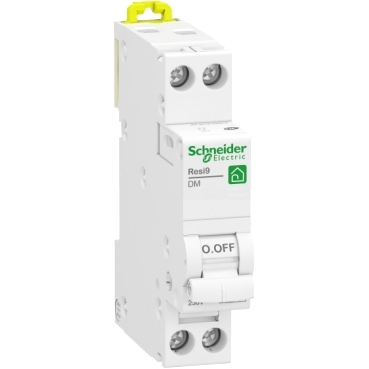

Part of the Schneider Electric Resi9 XP DM family, this Miniature Circuit Breaker (MCB) is engineered for reliable circuit protection in residential and light commercial electrical installations. The R9PFD625 model specifically addresses applications requiring a 25A current rating with a Type D tripping curve, suitable for circuits with high inrush currents such as motors or transformers. Its 1+N configuration provides protection for both live and neutral conductors.

Technical details

• Series: Resi9 XP DM
• Type: Miniature Circuit Breaker (MCB)
• Configuration: 1+N (1 Pole + Neutral)
• Current Rating: 25 Amperes (A)
• Tripping Curve: Type D
• Voltage Rating: 230 Volts AC (V AC)
• Breaking Capacity: 3000 Amperes (A) at 230V AC
• Pole Type: 1 Pole + Neutral

Applications & compatibility

This MCB is designed for use in distribution boards and panelboards within residential buildings, small offices, and light industrial settings. It is particularly well-suited for protecting circuits feeding inductive loads that experience significant startup currents, such as small motors in HVAC systems, pumps, or certain types of lighting ballasts.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFD625 or contact our technical team for cross-reference assistance with compatible Resi9 components.
