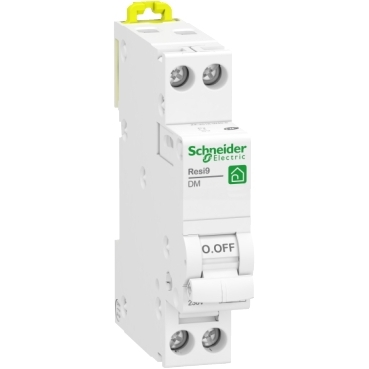

The Schneider Electric Resi9 XP DM MCB is a Miniature Circuit Breaker designed for overcurrent protection in electrical installations. This specific unit belongs to the Resi9 series and features a 1+N pole configuration, indicating it protects both the live and neutral conductors. It is rated for 32A and utilizes a Type D tripping curve, suitable for applications with high inrush currents.

Technical details

• Series: Resi9 XP DM
• Manufacturer: Schneider Electric
• Pole Configuration: 1+N (1 Pole + Neutral)
• Current Rating: 32 Amperes (A)
• Tripping Curve: Type D
• Voltage Rating: 230 Volts AC (V AC)
• Breaking Capacity: 3000 Amperes (A) at 230V AC
• Frequency: 50/60 Hz (typical for this series, verify with datasheet)

Applications & compatibility

This 32A Type D MCB is commonly employed in residential, commercial, and light industrial settings where inductive loads are present. Applications include protecting circuits for motors, transformers, and lighting systems that experience significant startup currents. It is designed to integrate seamlessly into standard DIN rail mounting systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the R9PFD632 or contact our technical team for cross-reference assistance with compatible Resi9 components.
