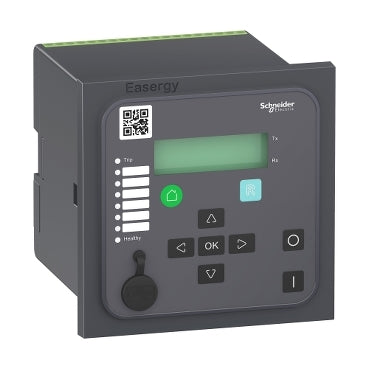

The Schneider Electric Easergy P1F protection relay is engineered for robust power system monitoring and control. This unit, part of the Easergy series, offers comprehensive protection capabilities for medium-voltage applications. Its design facilitates integration into various substation and industrial control architectures.

Technical details

• Series: Easergy P1F
• Supply Voltage Range: 90-250V AC/DC
• Current Transformer Inputs: 3 CT inputs
• Primary Current Rating (IN): Configurable from 0.05A to 12A
• Voltage Transformer Inputs: 1 VT input
• Digital Inputs: 8 DI
• Digital Outputs: 6 DO
• Communication Protocol: RS485
• Local Interface: USB port

Applications & compatibility

This protection relay is suitable for use in electrical distribution substations, industrial power systems, and renewable energy installations. It provides essential protection functions for transformers, feeders, and motors, ensuring operational reliability and safety in demanding environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the REL15023 or contact our technical team for cross-reference assistance with compatible Easergy components.
