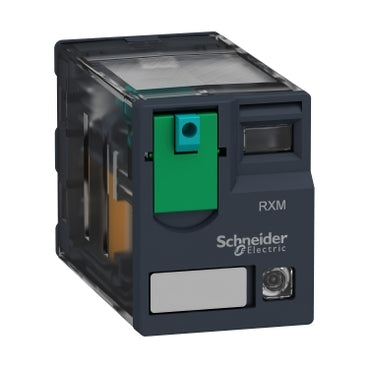

The Schneider Electric RXM2AB2ED is a miniature plug-in relay designed for control circuit applications in industrial environments. As part of the Schneider Electric RXM series, this relay offers a robust solution for switching loads up to 12 amps. Its compact form factor makes it suitable for space-constrained control panels found in machine building and process automation.

Technical details

• Series: RXM
• Contact Configuration: 2 Changeover (CO) contacts
• Current Rating: 12 A per contact
• Coil Voltage: 48 V DC
• Indicator: Integrated LED for status indication
• Mounting Type: Plug-in socket compatible (socket sold separately)
• Contact Material: AgNi (Silver Nickel)
• Operating Temperature Range: -40°C to +70°C

Applications & compatibility

This relay is commonly employed in control panels for packaging machinery, material handling systems, and general industrial automation. It serves as a reliable component for interposing signals, controlling motor starters, or switching auxiliary circuits within complex electrical systems. Ensure compatibility with a suitable RXM socket for proper installation and function.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the RXM2AB2ED or contact our technical team for cross-reference assistance with compatible Schneider Electric relay components.
