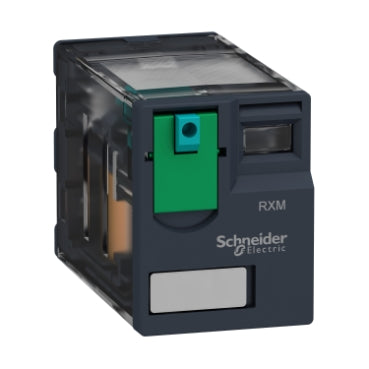

The Schneider Electric RXM4AB1JD is a miniature plug-in relay designed for control circuit applications. As part of the RXM series, this relay offers a compact form factor suitable for space-constrained electrical enclosures. It features a 4 Changeover (CO) contact configuration, providing versatile switching capabilities for multiple circuits.

Technical details

• Series: RXM
• Coil Voltage: 12 V DC
• Contact Configuration: 4 CO (Changeover)
• Rated Current: 6 A
• Mounting Type: Plug-in socket compatible
• Contact Material: Not specified; verify with datasheet for specific applications requiring material compatibility.
• Operating Temperature Range: Not specified; verify with datasheet for environmental requirements.
• Dimensions: Compact miniature size; refer to datasheet for precise dimensions.

Applications & compatibility

This relay is commonly employed in industrial control panels for machine automation, process control systems, and building automation. Its 4 CO contacts make it suitable for applications requiring the control of multiple independent circuits, such as managing different motor states, lighting circuits, or alarm signals within packaging lines, material handling equipment, or HVAC systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the RXM4AB1JD or contact our technical team for cross-reference assistance with compatible RXM series components.
