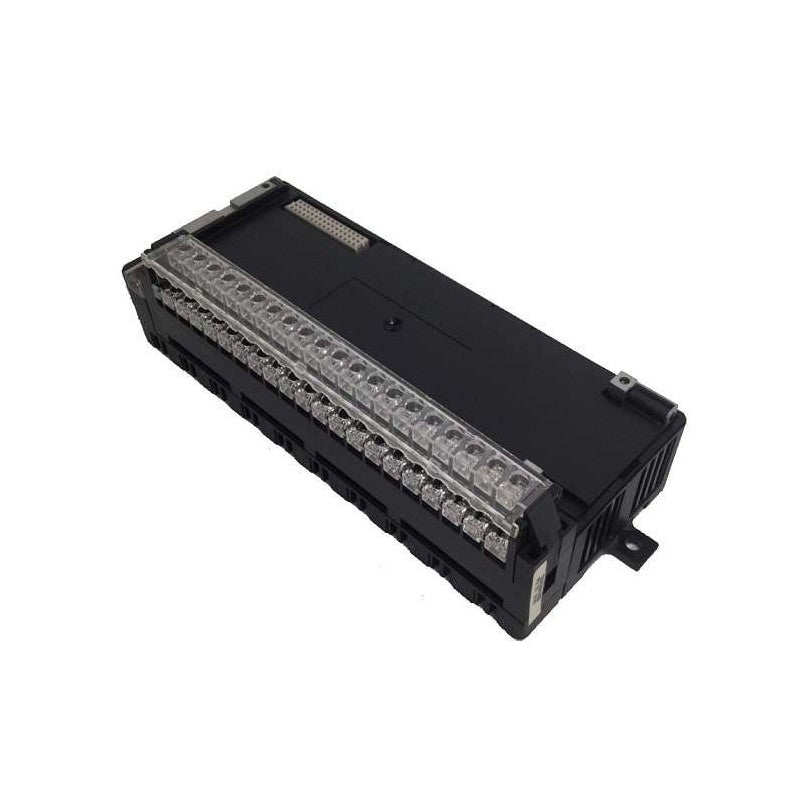

The TBX-DSS-1625 from SCHNEIDER ELECTRIC's Telemecanique TBX Series is a 24VDC output base designed for modular I/O expansion in automation systems. This unit provides 16 digital outputs, serving as a critical component for controlling actuators and signaling devices within complex industrial control architectures. Its design facilitates the expansion of existing PLC systems, enabling greater control and monitoring capabilities.

Technical details

• Series: TBX Series
• Manufacturer: SCHNEIDER ELECTRIC (Telemecanique)
• Voltage: 24VDC
• Output Points: 16 Digital Outputs
• Form Factor: Base Module for TBX Series I/O
• Functionality: Digital Output Expansion
• Compatibility: Designed for integration with compatible TBX Series controllers and modules. Specific compatibility should be verified against the manufacturer's datasheet.
• Current Rating: Specific output current rating per point and total module current rating are not determinable from the provided information. Please consult the manufacturer's datasheet for precise specifications.

Applications & compatibility

This TBX-DSS-1625 output base is commonly utilized in machine building, process control, and discrete manufacturing environments. It is suitable for applications requiring the control of solenoids, indicator lights, relays, and other low-power DC devices on packaging machinery, assembly lines, material handling systems, and general automation equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TBX-DSS-1625 or contact our technical team for cross-reference assistance with compatible TBX Series components.
