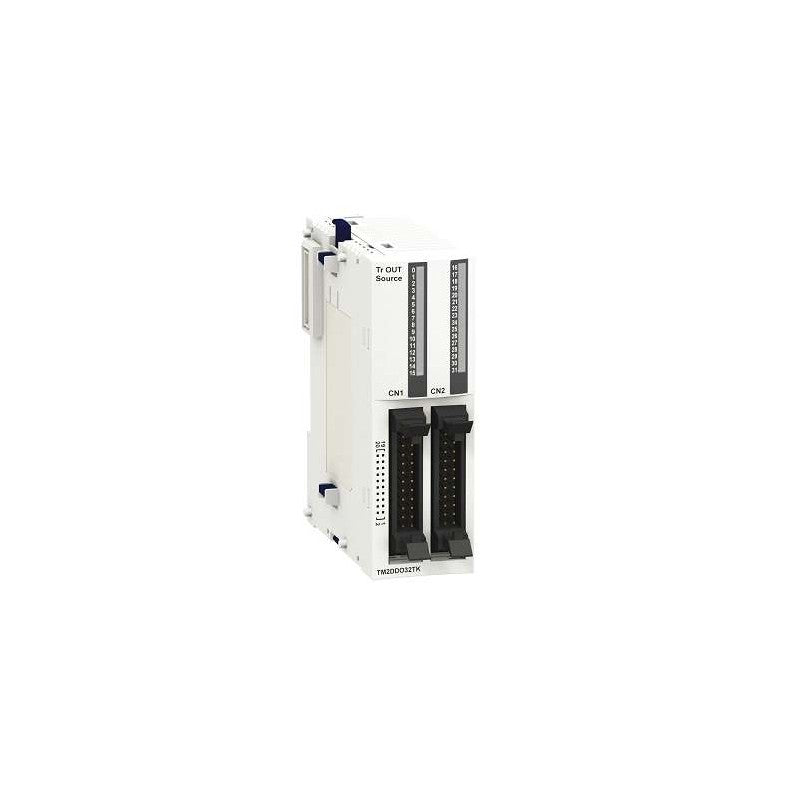

The Schneider Electric TM2DDO32TK is a discrete output module designed for the Modicon M238 series of programmable logic controllers. This module provides 32 transistor outputs, each rated for 24 VDC operation. It connects to the PLC base unit via a single HE10 connector, facilitating straightforward integration into automation systems.

Technical details

• Series: Modicon M238
• Output Type: Discrete Transistor
• Number of Outputs: 32
• Output Voltage Rating: 24 VDC
• Connection Type: HE10 Connector
• Module Type: Expansion Output Module
• Current Rating per Output: Consult manufacturer datasheet for specific current rating.
• Switching Frequency: Consult manufacturer datasheet for specific switching frequency.

Applications & compatibility

This output module is suitable for applications requiring a high density of 24 VDC switching capabilities. It is commonly integrated into control systems for packaging machinery, material handling equipment, and assembly lines where precise control of actuators, solenoids, and indicator lights is necessary.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM2DDO32TK or contact our technical team for cross-reference assistance with compatible Modicon M238 components.
