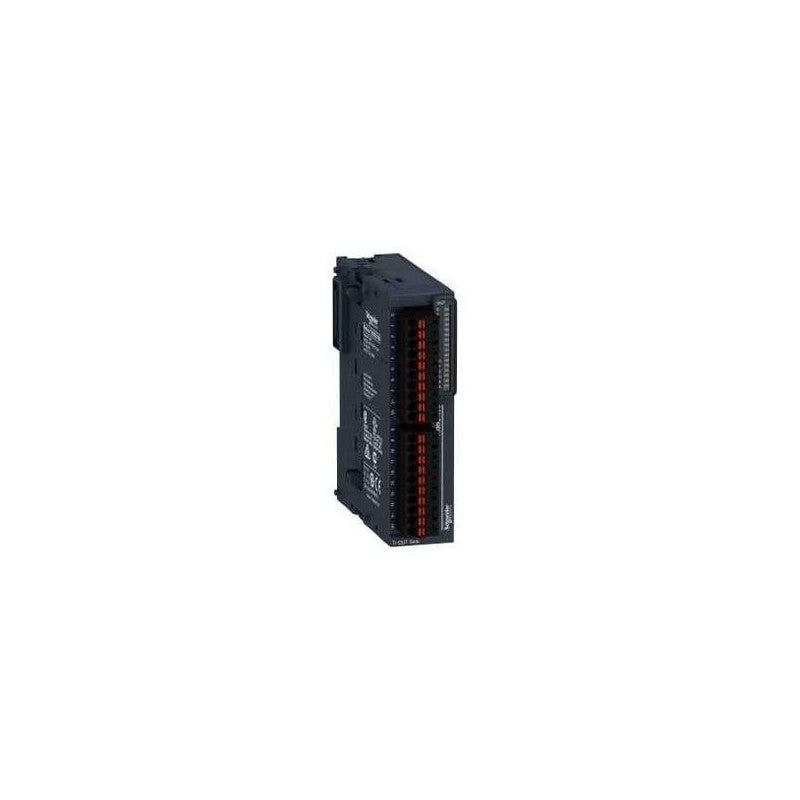

Part of the Modicon TM3 expansion module family, the Schneider Electric TM3DQ16UG provides 16 discrete transistor NPN outputs. This module is designed for integration into Modicon M221, M241, M251, and M262 logic controllers, offering expanded I/O capabilities for demanding automation tasks.

Technical details

• Series: Modicon TM3
• Output Type: Discrete Transistor
• Output Configuration: 16 NPN Outputs
• Connection Type: Spring Terminal
• Module Type: Expansion Module
• Voltage Rating: Compatible with 24 VDC systems (verify specific controller voltage requirements)
• Switching Current: 0.5 A per output (verify datasheet for total module current capacity)
• Output State Indication: LED indicators for each output

Applications & compatibility

The TM3DQ16UG is suitable for a wide range of industrial control applications requiring a high density of digital outputs. It is commonly employed in machine building, packaging machinery, material handling systems, and process control where precise switching of actuators, solenoids, or indicator lights is necessary.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM3DQ16UG or contact our technical team for cross-reference assistance with compatible Modicon TM3 expansion modules.
