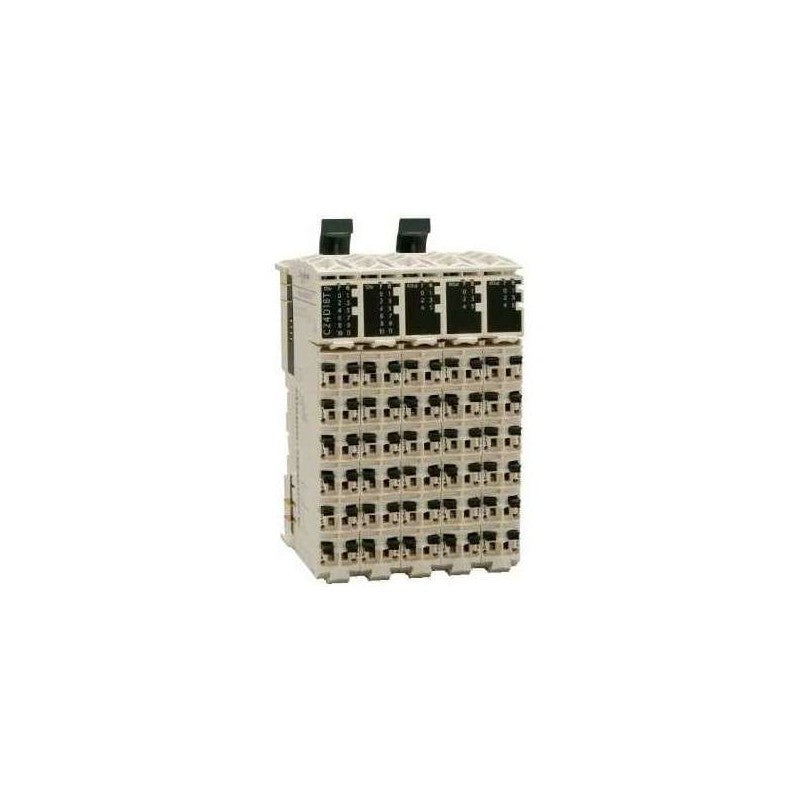

The Schneider Electric TM5C12D6T6L is a compact I/O expansion block designed for modular automation systems. As part of the Modicon TM5 series, this block integrates digital and analog input/output capabilities into a single unit, facilitating efficient control and monitoring in various industrial environments. Its design prioritizes space-saving and ease of integration within the TM5 platform.

Technical details

• Series: Modicon TM5
• Configuration: 24 I/O points
• Digital Inputs (DI): 12 points
• Digital Outputs (DO): 6 transistor outputs
• Analog Inputs (AI): 4 channels
• Analog Outputs (AO): 2 channels
• Form Factor: Compact expansion module
• Communication Protocol: Compatible with TM5 system bus

Applications & compatibility

This TM5 expansion block is suitable for applications requiring a dense concentration of digital and analog I/O within a compact footprint. It is commonly deployed in machine building, assembly lines, and process control systems where modularity and efficient wiring are paramount. The TM5C12D6T6L integrates seamlessly with other TM5 modules to build customized control solutions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5C12D6T6L or contact our technical team for cross-reference assistance with compatible Modicon TM5 components.
