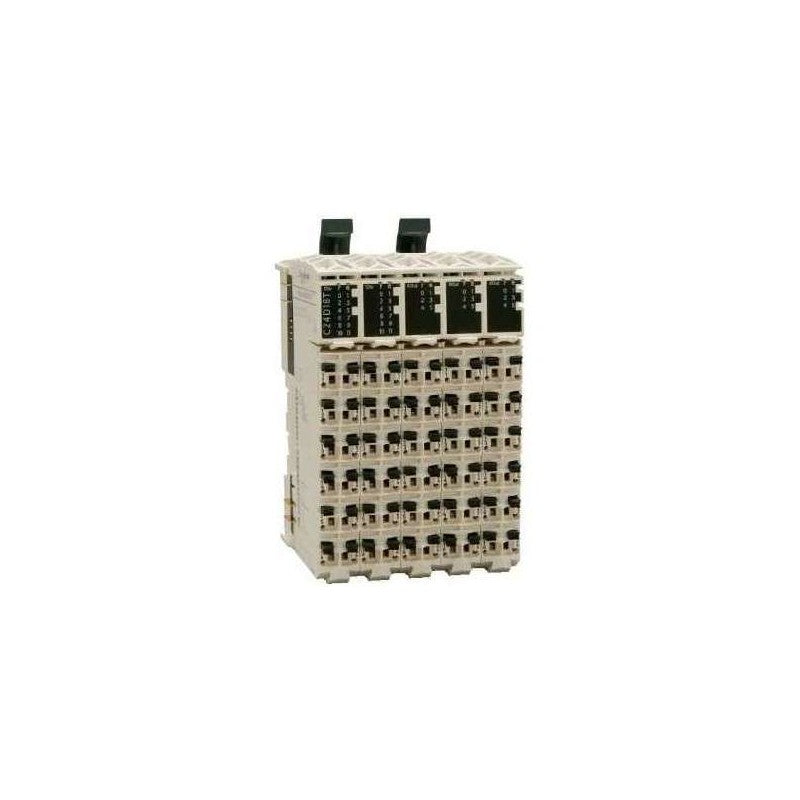

Part of the Schneider Electric Modicon TM5 system, the TM5CAI8O8CVL is a compact I/O expansion block designed for modular automation solutions. This block provides 8 analog inputs and 8 analog outputs, supporting common industrial signal ranges. It is engineered for integration into distributed I/O architectures within the Modicon platform.

Technical details

• Series: Modicon TM5
• I/O Configuration: 8 Analog Inputs, 8 Analog Outputs
• Analog Input Signal Range: 0-10 V
• Analog Output Signal Range: 4-20 mA
• Analog Resolution: 12 bits
• Form Factor: Compact I/O expansion block
• Communication Protocol: Compatible with TM5 bus communication modules (protocol details to be verified against manufacturer datasheet)
• Power Requirements: To be verified against manufacturer datasheet

Applications & compatibility

This TM5CAI8O8CVL expansion block is suitable for applications requiring precise analog signal acquisition and control. It is commonly integrated into machine control systems, process automation, and building automation projects where modularity and distributed I/O are advantageous. Compatibility extends to various Schneider Electric Modicon controllers and communication modules within the TM5 ecosystem.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5CAI8O8CVL or contact our technical team for cross-reference assistance with compatible Modicon TM5 components.
