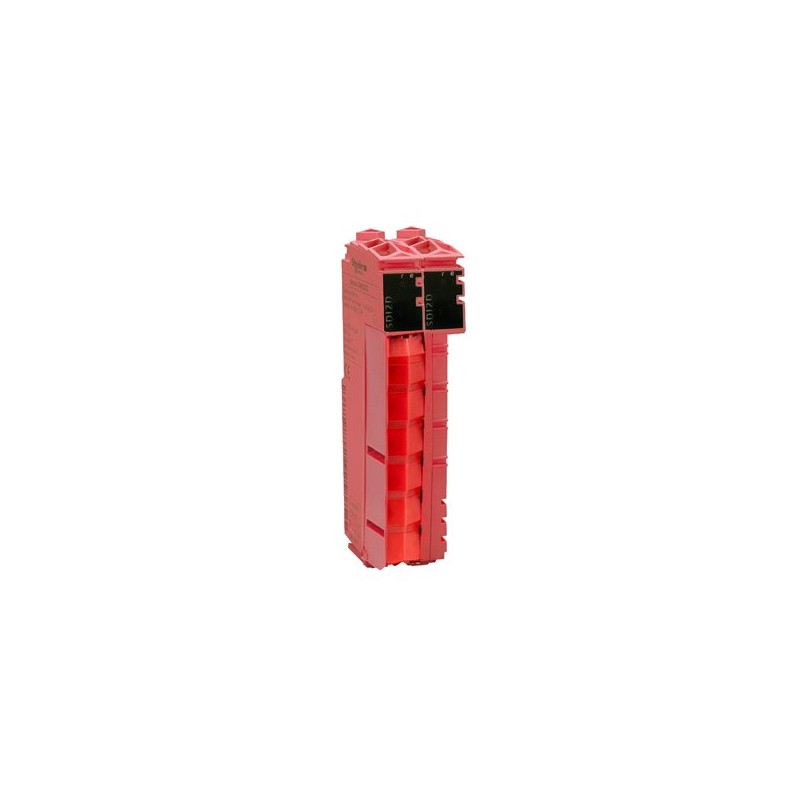

The Schneider Electric TM5SDC1FS is a Modicon TM5 counter channel module designed for high-speed counting applications. This module integrates seamlessly into Modicon TM5 I/O systems, providing precise measurement capabilities for demanding industrial environments. Its robust design ensures reliable operation in applications requiring accurate frequency tracking.

Technical details

• Series: Modicon TM5
• Module Type: Counter Channel
• Maximum Counting Frequency: 7 kHz
• Input Voltage: 24 VDC
• Input Signal Configurations: Supports A-A, B-B, and A-A'-B-B' differential encoder signal inputs.
• Functionality: High-speed counter channel for pulse counting and frequency measurement.
• Compatibility: Designed for use with the Modicon TM5 distributed I/O system.

Applications & compatibility

This counter module is ideal for applications requiring precise speed or position monitoring, such as packaging machinery, material handling systems, and process control loops. It is commonly integrated into automation architectures where accurate feedback from rotary encoders or pulse generators is critical for operational control and efficiency.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5SDC1FS or contact our technical team for cross-reference assistance with compatible Modicon TM5 components.
